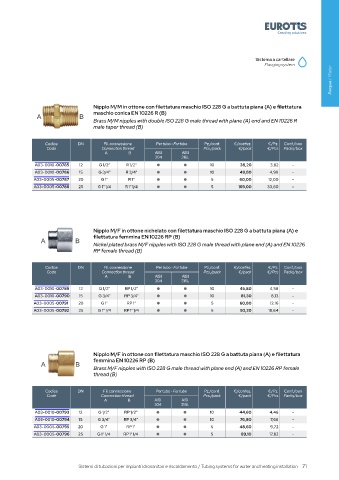

Page 71 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Sistema a cartellare
Flanging system
Acqua / Water

Nipplo M/M in ottone con filettatura maschio ISO 228 G a battuta piana (A) e filettatura
maschio conica EN 10226 R (B)
A B
Brass M/M nipples with double ISO 228 G male thread with plane (A) end and EN 10226 R
male taper thread (B)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0010-00785 12 G 1/2" R 1/2" 10 38,20 3,82 -
A03-0010-00786 15 G 3/4" R 3/4" 10 49,80 4,98 -
A03-0005-00787 20 G 1" R 1" 5 60,00 12,00 -
A03-0005-00788 25 G 1" 1/4 R 1" 1/4 5 169,00 33,80 -

Nipplo M/F in ottone nichelato con filettatura maschio ISO 228 G a battuta piana (A) e
filettatura femmina EN 10226 RP (B)
A B
Nickel plated brass M/F nipples with ISO 228 G male thread with plane end (A) and EN 10226
RP female thread (B)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0010-00789 12 G 1/2" RP 1/2" 10 45,80 4,58 -
A03-0010-00790 15 G 3/4" RP 3/4" 10 81,30 8,13 -
A03-0005-00791 20 G 1" RP 1" 5 60,80 12,16 -
A03-0005-00792 25 G 1" 1/4 RP 1" 1/4 5 93,20 18,64 -

Nipplo M/F in ottone con filettatura maschio ISO 228 G a battuta piana (A) e filettatura
femmina EN 10226 RP (B)
A B
Brass M/F nipples with ISO 228 G male thread with plane end (A) and EN 10226 RP female
thread (B)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0010-00793 12 G 1/2" RP 1/2" 10 44,60 4,46 -
A03-0010-00794 15 G 3/4" RP 3/4" 10 76,80 7,68 -
A03-0005-00795 20 G 1" RP 1" 5 48,60 9,72 -
A03-0005-00796 25 G 1" 1/4 RP 1" 1/4 5 89,10 17,82 -

Sistemi di tubazioni per impianti idrosanitari e riscaldamento / Tubing systems for water and heating installation 71
