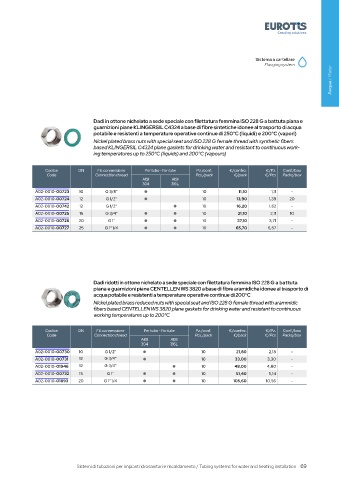

Page 69 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Sistema a cartellare
Flanging system
Acqua / Water

Dadi in ottone nichelato a sede speciale con filettatura femmina ISO 228 G a battuta piana e
guarnizioni piane KLINGERSIL C4324 a base di fibre sintetiche idonee al trasporto di acqua
potabile e resistenti a temperature operative continue di 250°C (liquidi) e 200°C (vapori)
Nickel plated brass nuts with special seat and ISO 228 G female thread with synthetic fibers
based KLINGERSIL C4324 plane gaskets for drinking water and resistant to continuous work-
ing temperatures up to 250°C (liquids) and 200°C (vapours)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
AISI AISI
304 316L
A02-0010-00723 10 G 3/8" 10 11,10 1,11 -
A02-0010-00724 12 G 1/2" 10 13,90 1,39 20
A02-0010-00742 12 G 1/2" 10 16,20 1,62 -
A02-0010-00725 15 G 3/4" 10 21,10 2,11 10
A02-0010-00726 20 G 1" 10 37,10 3,71 -
A02-0010-00727 25 G 1" 1/4 10 65,70 6,57 -

Dadi ridotti in ottone nichelato a sede speciale con filettatura femmina ISO 228 G a battuta
piana e guarnizioni piane CENTELLEN WS 3820 a base di fibre aramidiche idonee al trasporto di
acqua potabile e resistenti a temperature operative continue di 200°C
Nickel plated brass reduced nuts with special seat and ISO 228 G female thread with arammidic
fibers based CENTELLEN WS 3820 plane gaskets for drinking water and resistant to continuous
working temperatures up to 200°C

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
AISI AISI
304 316L
A02-0010-00730 10 G 1/2" 10 21,80 2,18 -
A02-0010-00731 12 G 3/4" 10 33,00 3,30 -
A02-0010-01946 12 G 3/4" 10 48,00 4,80 -
A02-0010-00732 15 G 1" 10 51,40 5,14 -
A02-0010-01893 20 G 1" 1/4 10 105,60 10,56 -

Sistemi di tubazioni per impianti idrosanitari e riscaldamento / Tubing systems for water and heating installation 69
