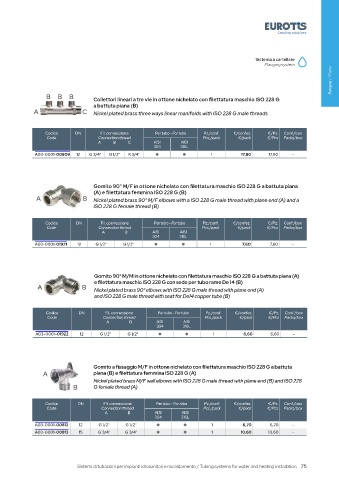

Page 75 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Sistema a cartellare
Flanging system
Acqua / Water

B B B Collettori lineari a tre vie in ottone nichelato con filettatura maschio ISO 228 G
a battuta piana (B)
A C Nickel plated brass three ways linear manifolds with ISO 228 G male threads

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B C AISI AISI
304 316L
A03-0001-00809 12 G 3/4" G 1/2" R 3/4" 1 17,80 17,80 -

Gomito 90° M/F in ottone nichelato con filettatura maschio ISO 228 G a battuta piana
(A) e filettatura femmina ISO 228 G (B)
A B Nickel plated brass 90° M/F elbows with a ISO 228 G male thread with plane end (A) and a
ISO 228 G female thread (B)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0001-01921 12 G 1/2" G 1/2" 1 7,60 7,60 -

Gomito 90° M/M in ottone nichelato con filettatura maschio ISO 228 G a battuta piana (A)
e filettatura maschio ISO 228 G con sede per tubo rame De 14 (B)
A B Nickel plated brass 90° elbows with ISO 228 G male thread with plane end (A)
and ISO 228 G male thread with seat for De14 copper tube (B)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0001-01922 12 G 1/2" G 1/2" 1 6,60 6,60 -

Gomito a fissaggio M/F in ottone nichelato con filettatura maschio ISO 228 G a battuta
A piana (B) e filettatura femmina ISO 228 G (A)
Nickel plated brass M/F wall elbows with ISO 228 G male thread with plane end (B) and ISO 228
B G female thread (A)

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A B AISI AISI
304 316L
A03-0001-00812 12 G 1/2" G 1/2" 1 6,70 6,70 -
A03-0001-00813 15 G 3/4" G 3/4" 1 10,60 10,60 -

Sistemi di tubazioni per impianti idrosanitari e riscaldamento / Tubing systems for water and heating installation 75
