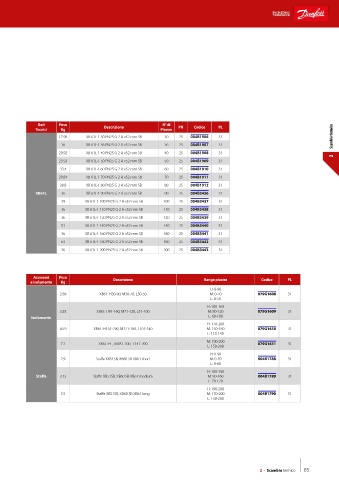

Page 87 - DANFOSS - CATALOGO GENERALE - DELLAFIORE

Dati Peso N° di
Tecnici Kg Descrizione Piastre PN Codice PL
17.98 XB 61L-1 30 PN25 G 2 A x52 mm SB 30 25 004B1906 31 Scambio termico
16 XB 61L-1 36 PN25 G 2 A x52 mm SB 36 25 004B1907 31
20.92 XB 61L-1 40 PN25 G 2 A x52 mm SB 40 25 004B1908 31
2
23.93 XB 61L-1 50 PN25 G 2 A x52 mm SB 50 25 004B1909 31
33.4 XB 61L-1 60 PN25 G 2 A x52 mm SB 60 25 004B1910 31
29.84 XB 61L-1 70 PN25 G 2 A x52 mm SB 70 25 004B1911 31
38.8 XB 61L-1 80 PN25 G 2 A x52 mm SB 80 25 004B1912 31
XB61L 36 XB 61L-1 90 PN25 G 2 A x52 mm SB 90 25 004B3436 31
39 XB 61L-1 100 PN25 G 2 A x52 mm SB 100 25 004B3437 31
36 XB 61L-1 110 PN25 G 2 A x52 mm SB 110 25 004B3438 31
36 XB 61L-1 120 PN25 G 2 A x52 mm SB 120 25 004B3439 31
51 XB 61L-1 140 PN25 G 2 A x52 mm SB 140 25 004B3440 31
36 XB 61L-1 160 PN25 G 2 A x52 mm SB 160 25 004B3441 31
63 XB 61L-1 180 PN25 G 2 A x52 mm SB 180 25 004B3442 31
36 XB 61L-1 200 PN25 G 2 A x52 mm SB 200 25 004B3443 31

Accessori Peso
e isolamento Kg Descrizione Range piastre Codice PL
H: 0-90
2.89 XB61: H30-90, M30-70, L30-50 M: 0-70 079G1608 31
L: 0-50
H: 100-160
3.58 XB61: H91-160, M71-120, L51-100 M: 80-120 079G1609 31
Isolamento L: 60-100
H: 170-200
4.59 XB61: H161-200, M121-180, L101-140 M: 130-180 079G1610 31
L: 110-140
M: 190-200
7.2 XB61: H-, M181-200, L141-200 079G1611 31
L: 150-200
H: 0-90
2.9 Staffe XB51SB; XB60 SB XB61 short M: 0-70 004B1788 31
L: 0-60
H: 100-180
Staffe 3.13 Staffe XB51SB; XB60 SB XB61 medium M: 80-160 004B1789 31
L: 70-120
H: 190-200
3.5 Staffe XB51SB; XB60 SB XB61 long M: 170-200 004B1790 31
L: 130-200

2 - Scambio termico 85
