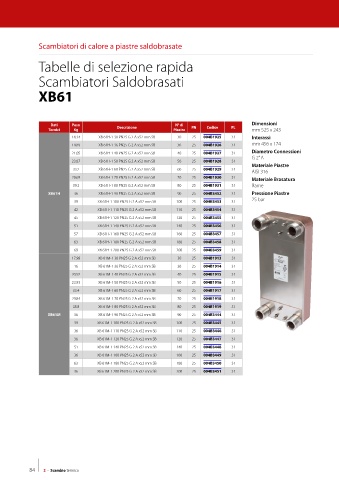

Scambiatori di calore a piastre saldobrasate

Tabelle di selezione rapida

Scambiatori Saldobrasati

XB61

Dati Peso N° di Dimensioni
Tecnici Kg Descrizione Piastre PN Codice PL mm 525 x 243
18.14 XB 61H-1 30 PN25 G 2 A x52 mm SB 30 25 004B1925 31 Interassi
19.89 XB 61H-1 36 PN25 G 2 A x52 mm SB 36 25 004B1926 31 mm 456 x 174
21.05 XB 61H-1 40 PN25 G 2 A x52 mm SB 40 25 004B1927 31 Diametro Connessioni
G 2” A
23.87 XB 61H-1 50 PN25 G 2 A x52 mm SB 50 25 004B1928 31
Materiale Piastre
33.2 XB 61H-1 60 PN25 G 2 A x52 mm SB 60 25 004B1929 31
AISI 316
29.69 XB 61H-1 70 PN25 G 2 A x52 mm SB 70 25 004B1930 31 Materiale Brasatura
39.2 XB 61H-1 80 PN25 G 2 A x52 mm SB 80 25 004B1931 31 Rame
XB61H 36 XB 61H-1 90 PN25 G 2 A x52 mm SB 90 25 004B3452 31 Pressione Piastre
39 XB 61H-1 100 PN25 G 2 A x52 mm SB 100 25 004B3453 31 25 bar
42 XB 61H-1 110 PN25 G 2 A x52 mm SB 110 25 004B3454 31
45 XB 61H-1 120 PN25 G 2 A x52 mm SB 120 25 004B3455 31
51 XB 61H-1 140 PN25 G 2 A x52 mm SB 140 25 004B3456 31
57 XB 61H-1 160 PN25 G 2 A x52 mm SB 160 25 004B3457 31
63 XB 61H-1 180 PN25 G 2 A x52 mm SB 180 25 004B3458 31
69 XB 61H-1 200 PN25 G 2 A x52 mm SB 200 25 004B3459 31
17.98 XB 61M-1 30 PN25 G 2 A x52 mm SB 30 25 004B1913 31
16 XB 61M-1 36 PN25 G 2 A x52 mm SB 36 25 004B1914 31
20.92 XB 61M-1 40 PN25 G 2 A x52 mm SB 40 25 004B1915 31
23.93 XB 61M-1 50 PN25 G 2 A x52 mm SB 50 25 004B1916 31
33.4 XB 61M-1 60 PN25 G 2 A x52 mm SB 60 25 004B1917 31
29.84 XB 61M-1 70 PN25 G 2 A x52 mm SB 70 25 004B1918 31
38.8 XB 61M-1 80 PN25 G 2 A x52 mm SB 80 25 004B1919 31
XB61M 36 XB 61M-1 90 PN25 G 2 A x52 mm SB 90 25 004B3444 31
39 XB 61M-1 100 PN25 G 2 A x52 mm SB 100 25 004B3445 31
36 XB 61M-1 110 PN25 G 2 A x52 mm SB 110 25 004B3446 31
36 XB 61M-1 120 PN25 G 2 A x52 mm SB 120 25 004B3447 31
51 XB 61M-1 140 PN25 G 2 A x52 mm SB 140 25 004B3448 31
36 XB 61M-1 160 PN25 G 2 A x52 mm SB 160 25 004B3449 31
63 XB 61M-1 180 PN25 G 2 A x52 mm SB 180 25 004B3450 31
36 XB 61M-1 200 PN25 G 2 A x52 mm SB 200 25 004B3451 31
