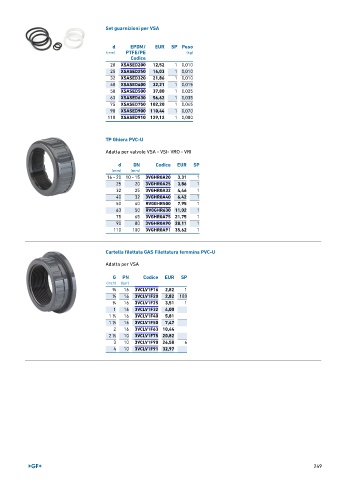

Page 249 - GEORGFISCHER - LISTINO 899

Set guarnizioni per VSA

d EPDM/ EUR SP Peso
(mm) PTFE/PE (kg)
Codice
20 XSASED200 12,52 1 0,010
25 XSASED250 16,03 1 0,010
32 XSASED320 21,86 1 0,010
40 XSASED400 32,21 1 0,015
50 XSASED500 37,80 1 0,025
63 XSASED630 56,62 1 0,035
75 XSASED750 102,20 1 0,045
90 XSASED900 110,44 1 0,070
110 XSASED910 129,12 1 0,080

TP Ghiera PVC-U

Adatta per valvole VSA - VSI- VRO - VRI

d DN Codice EUR SP
(mm) (mm)
16 - 20 10 - 15 3VGHR0A20 3,31 1
25 20 3VGHR0A25 3,86 1
32 25 3VGHR0A32 4,46 1
40 32 3VGHR0A40 6,42 1
50 40 RV0GHR500 7,95 1
63 50 RV0GHR630 11,02 1
75 65 3VGHR0A75 21,75 1
90 80 3VGHR0A90 28,11 1
110 100 3VGHR0A91 35,62 1

Cartella filettata GAS Filettatura femmina PVC-U
Adatta per VSA

G PN Codice EUR SP
(inch) (bar)
3 16 3VCLV1F16 2,82 1
∕8
1 ∕2 16 3VCLV1F20 2,82 180
3 16 3VCLV1F25 3,51 1
∕4
1 16 3VCLV1F32 4,00
1 16 3VCLV1F40 5,81
1 ∕4
1
1 ∕2 16 3VCLV1F50 7,47
2 16 3VCLV1F63 10,44
1
2 ∕2 10 3VCLV1F75 20,82
3 10 3VCLV1F90 26,58 6
4 10 3VCLV1F91 32,97

249
