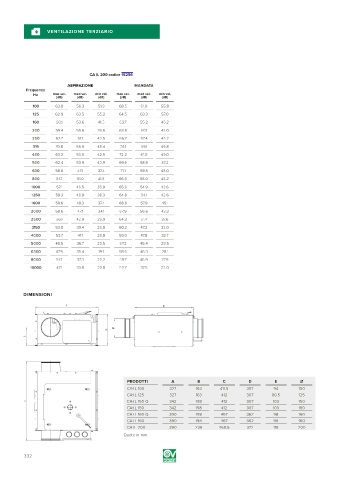

Page 332 - VORTICE - CATALOGO 2019

VENTILAZIONE TERZIARIO

CA IL 200 codice 16256
ASPIRAZIONE MANDATA
Frequenza
Hz max vel. med vel. min vel. max vel. med vel. min vel.
(dB) (dB) (dB) (dB) (dB) (dB)
100 63.0 56.3 51.8 68.5 61.0 55.8
125 62.9 63.5 55.2 64.5 63.3 57.0
160 60.1 53.6 41.5 63.7 55.2 46.2
200 59.4 55.6 39.6 63.8 60.1 43.0
250 62.7 51.1 40.5 66.7 57.4 45.2
315 70.8 56.0 45.4 74.1 59.1 46.8
400 63.2 53.0 42.5 72.2 61.0 49.0
500 62.4 50.9 40.9 69.6 58.6 47.2
630 58.6 47.1 37.4 71.1 59.5 48.0
800 61.7 51.0 41.8 66.9 56.0 45.2
1000 57.1 46.5 36.9 65.9 54.9 43.6
1250 59.3 48.9 38.3 64.8 54.1 42.6
1600 59.6 49.3 37.4 68.8 57.9 45.1
2000 58.6 47.1 34.1 67.9 56.6 43.3
2500 56.1 42.9 29.9 64.3 51.4 37.6
3150 53.0 39.4 26.0 60.2 47.2 33.0
4000 53.7 41.1 26.8 59.9 47.8 32.7
5000 48.5 36.7 20.5 57.2 45.4 28.5
6300 47.9 35.4 19.1 58.6 46.3 28.1
8000 51.7 37.3 20.2 59.7 46.9 27.9
10000 47.1 30.8 20.8 52.7 37.5 22.0

DIMENSIONI

A D

E

PRODOTTI A B C D E Ø
CA-IL 100 327 163 411.5 307 94 100
CA-IL 125 327 163 412 307 80.5 125
C CA-IL 150 Q 342 198 412 307 103 150
CA-IL 150 342 198 412 307 103 150
CA-IL 160 Q 390 198 467 362 98 160
CA-IL 160 390 198 467 362 98 160
CA-IL 200 390 238 468.5 372 118 200
Quote in mm

332
