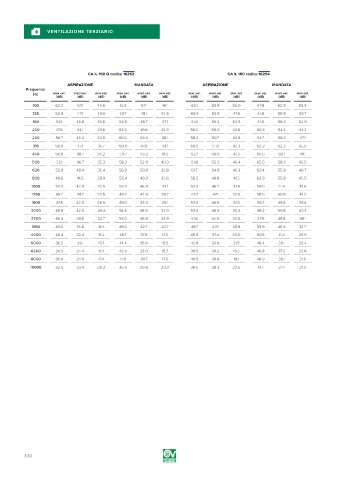

Page 330 - VORTICE - CATALOGO 2019

VENTILAZIONE TERZIARIO

CA IL 150 Q codice 16252 CA IL 150 codice 16254
ASPIRAZIONE MANDATA ASPIRAZIONE MANDATA
Frequenza
Hz max vel. med vel. min vel. max vel. med vel. min vel. max vel. med vel. min vel. max vel. med vel. min vel.
(dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB) (dB)
100 62.2 57.1 45.6 61.2 57.1 46.1 69.1 63.9 56.0 67.8 62.9 55.3
125 52.9 47.1 43.0 53.7 48.1 42.5 60.3 53.9 47.8 61.8 55.9 53.7
160 53.1 46.8 36.6 53.8 48.7 37.1 61.0 55.4 50.5 61.5 56.3 52.9
200 47.6 44.1 29.6 53.0 49.6 34.3 56.0 50.0 40.6 60.3 54.3 44.2
250 56.7 46.2 32.5 60.0 53.4 38.1 58.2 50.7 40.9 64.7 58.3 47.1
315 58.0 47.1 34.7 60.4 47.8 34.1 60.9 51.8 43.3 62.2 52.2 42.5
400 54.0 48.7 38.2 59.7 53.2 41.6 62.1 56.0 47.3 65.0 58.7 49.1
500 52.1 46.7 35.3 58.3 52.9 40.3 61.8 55.2 46.4 65.0 58.3 48.5
630 53.9 48.4 36.4 56.8 50.9 38.8 61.7 54.9 46.3 63.4 55.9 46.7
800 49.6 41.9 29.4 55.4 49.3 36.6 56.3 49.8 41.3 62.8 55.8 46.5
1000 53.5 43.9 30.5 53.5 46.9 33.1 53.5 46.7 37.8 59.0 51.4 41.9
1250 45.7 39.7 26.6 49.2 42.8 28.7 53.7 47.1 38.0 58.0 50.8 41.0
1600 47.8 42.0 28.5 49.0 43.3 29.1 53.6 46.6 37.0 56.7 49.4 39.4
2000 48.8 42.5 28.4 54.6 48.5 33.0 53.6 46.4 36.2 58.2 50.8 40.3
2500 46.4 39.6 22.7 53.0 46.8 28.9 51.6 44.0 33.0 57.5 49.8 38.1
3150 43.5 36.8 18.5 49.0 42.7 22.7 49.7 41.5 29,9 53.9 45.4 32.7
4000 40.4 32.4 15.2 45.7 37.9 17.2 45.9 37.4 25.0 50.6 41,4 28.5
5000 38.2 29.1 15.7 44.4 35.6 16.5 42.8 33.9 21.5 48.4 39.1 25.4
6300 34.3 24.4 16.4 42.9 33.0 16.7 39.5 30.2 19.0 46.8 37.3 23.6
8000 35.0 24.0 17.4 41.5 30.7 17.5 40.5 30.8 19.1 46.0 36.1 21.6
10000 32.5 23.4 20.3 35.9 25.6 20.3 38.5 28.3 20.5 41.7 31.4 21.0
