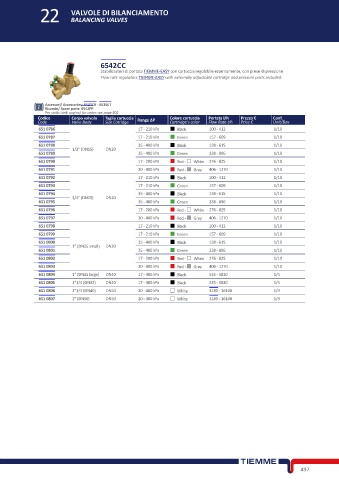

Page 517 - TIEMME - COMPONENTI IDRAULICI

22 VALVOLE DI BILANCIAMENTO
BALANCING VALVES

6542CC
Stabilizzatori di portata TIEMME-EASY con cartuccia regolabile esternamente, con prese di pressione
Flow rate regulators TIEMME-EASY with externally adjustable cartridge and pressure ports included.

Accessori/ Accessories: 6543CH - 6535ET
Ricambi/ Spare parts: 6542PP
Per codici vedi pagina/ for codes see page 502
Codice Corpo valvola Taglia cartuccia Colore cartuccia Portata l/h Prezzo € Conf.
Code Valve Body Size Catridge Range ΔP Cartridge's color Flow Rate l/h Price € Unit/Box
651 0786 17 - 210 kPa Black 100 - 412 1/10
651 0787 17 - 210 kPa Green 157 - 609 1/10
651 0788 35 - 400 kPa Black 138 - 615 1/10
1/2” (DN15) DN20
651 0789 35 - 400 kPa Green 238 - 896 1/10
651 0790 17 - 200 kPa Red - White 276 - 825 1/10
651 0791 30 - 400 kPa Red - Grey 406 - 1270 1/10
651 0792 17 - 210 kPa Black 100 - 412 1/10
651 0793 17 - 210 kPa Green 157 - 609 1/10
651 0794 35 - 400 kPa Black 138 - 615 1/10
3/4” (DN20) DN20
651 0795 35 - 400 kPa Green 238 - 896 1/10
651 0796 17 - 200 kPa Red - White 276 - 825 1/10
651 0797 30 - 400 kPa Red - Grey 406 - 1270 1/10
651 0798 17 - 210 kPa Black 100 - 412 1/10
651 0799 17 - 210 kPa Green 157 - 609 1/10
651 0800 35 - 400 kPa Black 138 - 615 1/10
1” (DN25 small) DN20
651 0801 35 - 400 kPa Green 238 - 896 1/10
651 0802 17 - 200 kPa Red - White 276 - 825 1/10
651 0803 30 - 400 kPa Red - Grey 406 - 1270 1/10
651 0804 1” (DN25 large) DN40 17 - 400 kPa Black 535 - 5830 1/4
651 0805 1”1/4 (DN32) DN40 17 - 400 kPa Black 535 - 5830 1/4
651 0806 1”1/2 (DN40) DN50 20 - 400 kPa White 3180 - 16100 1/3
651 0807 2” (DN50) DN50 20 - 400 kPa White 3180 - 16100 1/3
