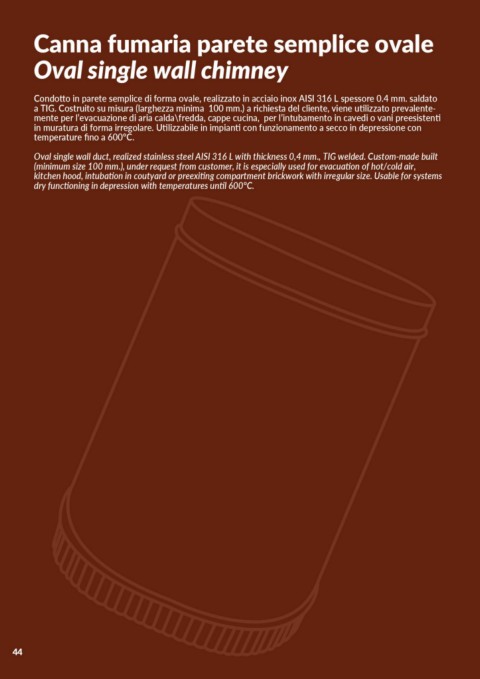

Canna fumaria parete semplice ovale


         Oval single wall chimney




         Condotto in parete semplice di forma ovale, realizzato in acciaio inox AISI 316 L spessore 0.4 mm. saldato
         a TIG. Costruito su misura (larghezza minima  100 mm.) a richiesta del cliente, viene utilizzato prevalente-
         mente per l’evacuazione di aria calda\fredda, cappe cucina,  per l’intubamento in cavedi o vani preesistenti
         in muratura di forma irregolare. Utilizzabile in impianti con funzionamento a secco in depressione con
         temperature fino a 600°C.

         Oval single wall duct, realized stainless steel AISI 316 L with thickness 0,4 mm., TIG welded. Custom-made built
         (minimum size 100 mm.), under request from customer, it is especially used for evacuation of hot/cold air,
         kitchen hood, intubation in coutyard or preexiting compartment brickwork with irregular size. Usable for systems
         dry functioning in depression with temperatures until 600°C.
