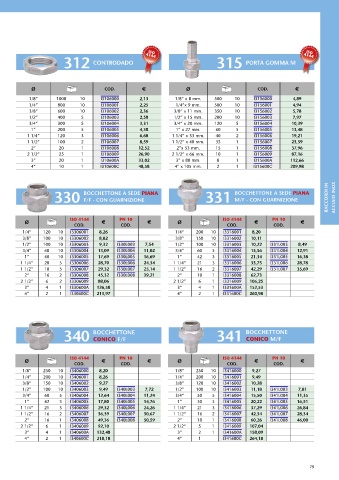

Page 79 - ATUSA - LISTINO 2023

ISO 4144
ISO
312 CONTRODADO 315 PORTA GOMMA M
4144

Ø COD. E Ø COD. E
1/8” 1000 10 I3106000 2,13 1/8” x 8 mm. 500 10 I3156000 4,89
1/4” 800 10 I3106001 2,25 1/4”x 9 mm. 500 10 I3156001 4,94
3/8” 600 10 I3106002 2,36 3/8” x 11 mm. 350 10 I3156002 5,78
1/2” 400 5 I3106003 2,58 1/2” x 15 mm. 200 10 I3156003 7,97
3/4” 300 5 I3106004 3,31 3/4” x 20 mm. 120 5 I3156004 10,39
1” 200 5 I3106005 4,38 1” x 27 mm. 60 5 I3156005 13,48
1 1/4” 120 3 I3106006 6,68 1 1/4” x 33 mm. 40 2 I3156006 19,21
1 1/2” 100 2 I3106007 8,59 1 1/2” x 40 mm. 35 1 I3156007 23,59
2” 20 1 I3106008 12,52 2”x 53 mm. 15 1 I3156008 37,96
2 1/2” 25 1 I3106009 26,90 2 1/2” x 66 mm. 10 1 I3156009 87,16
3” 20 1 I310600A 33,02 3” x 80 mm. 8 1 I315600A 112,66
4” 10 1 I310600C 48,58 4” x 105 mm. 2 1 I315600C 209,98

330 BOCCHETTONE A SEDE PIANA 331 BOCCHETTONE A SEDE PIANA RACCORDI IN ACCIAIO INOX
F/F - CON GUARNIZIONE
M/F - CON GUARNIZIONE

ISO 4144 PN 10 ISO 4144 PN 10
Ø E E Ø E E
COD. COD. COD. COD.
1/4” 120 10 I3306001 8,26 1/4” 200 10 I3316001 8,20
3/8” 100 10 I3306002 8,82 3/8” 150 10 I3316002 10,11
1/2” 100 10 I3306003 9,32 I330L003 7,54 1/2” 100 10 I3316003 10,22 I331L003 8,49
3/4” 60 10 I3306004 13,09 I330L004 11,02 3/4” 60 5 I3316004 15,56 I331L004 12,91
1” 40 10 I3306005 17,69 I330L005 16,69 1” 42 3 I3316005 21,34 I331L005 16,38
1 1/4” 20 5 I3306006 28,70 I330L006 24,34 1 1/4” 21 3 I3316006 33,75 I331L006 28,78
1 1/2” 18 3 I3306007 29,32 I330L007 25,14 1 1/2” 16 2 I3316007 42,29 I331L007 35,69
2” 16 2 I3306008 45,32 I330L008 39,21 2” 10 1 I3316008 62,73
2 1/2” 6 2 I3306009 88,06 2 1/2” 6 1 I3316009 106,25
3” 4 1 I330600A 126,58 3” 4 1 I331600A 152,53
4” 2 1 I330600C 213,97 4” 2 1 I331600C 260,98

340 BOCCHETTONE 341 BOCCHETTONE
CONICO M/F
CONICO F/F

ISO 4144 PN 10 ISO 4144 PN 10
Ø E E Ø E E
COD. COD. COD. COD.
1/8” 250 10 I3406000 8,20 1/8” 250 10 I3416000 9,27
1/4” 200 10 I3406001 8,26 1/4” 200 10 I3416001 9,49
3/8” 150 10 I3406002 9,27 3/8” 120 10 I3416002 10,28
1/2” 100 10 I3406003 9,49 I340L003 7,72 1/2” 100 10 I3416003 11,18 I341L003 7,81
3/4” 60 5 I3406004 12,64 I340L004 11,24 3/4” 50 5 I3416004 15,50 I341L004 11,35
1” 42 3 I3406005 17,80 I340L005 14,76 1” 30 3 I3416005 20,22 I341L005 16,51
1 1/4” 21 3 I3406006 29,32 I340L006 24,26 1 1/4” 21 3 I3416006 37,29 I341L006 26,84
1 1/2” 16 2 I3406007 36,39 I340L007 30,67 1 1/2” 16 2 I3416007 42,34 I341L007 28,34
2” 16 1 I3406008 49,36 I340L008 50,59 2” 10 1 I3416008 60,26 I341L008 46,00
2 1/2” 6 1 I3406009 92,10 2 1/2” 5 1 I3416009 107,04
3” 4 1 I340600A 132,48 3” 2 1 I341600A 158,09
4” 2 1 I340600C 218,18 4” 1 I341600C 264,18

79
