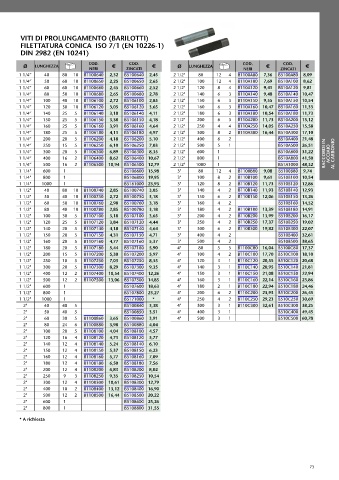

Page 73 - ATUSA - LISTINO 2023

VITI DI PROLUNGAMENTO (BARILOTTI)
FILETTATURA CONICA ISO 7/1 (EN 10226-1)
DIN 2982 (EN 10241)

Ø LUNGHEZZA COD. € COD. € Ø LUNGHEZZA COD. € COD. €
NERI ZINCATI NERI ZINCATI
1 1/4” 40 80 10 B1100640 2,32 B5100640 2,45 2 1/2" 80 12 4 B1100A80 7,36 B5100A80 8,09
1 1/4” 50 60 10 B1100650 2,25 B5100650 2,65 2 1/2" 100 12 4 B110A100 7,69 B510A100 8,62
1 1/4” 60 60 10 B1100660 2,45 B5100660 2,52 2 1/2" 120 8 4 B110A120 9,41 B510A120 9,81
1 1/4” 80 50 10 B1100680 2,65 B5100680 2,78 2 1/2" 140 6 3 B110A140 9,48 B510A140 10,47
1 1/4” 100 40 10 B1106100 2,72 B5106100 2,85 2 1/2" 150 6 3 B110A150 9,55 B510A150 10,54
1 1/4” 120 30 10 B1106120 3,05 B5106120 3,65 2 1/2" 160 6 3 B110A160 10,47 B510A160 11,33
1 1/4” 140 25 5 B1106140 3,18 B5106140 4,11 2 1/2" 180 6 3 B110A180 10,54 B510A180 11,73
1 1/4” 150 25 5 B1106150 3,38 B5106150 4,18 2 1/2" 200 6 3 B110A200 11,73 B510A200 13,12
1 1/4” 160 25 5 B1106160 3,91 B5106160 4,64 2 1/2" 250 4 4 B110A250 14,05 B510A250 15,58
1 1/4” 180 25 5 B1106180 4,11 B5106180 4,97 2 1/2" 300 8 2 B110A300 16,44 B510A300 17,10
1 1/4” 200 20 5 B1106200 4,18 B5106200 5,10 2 1/2" 400 6 2 B510A400 21,48
1 1/4” 250 15 5 B1106250 6,10 B5106250 7,03 2 1/2" 500 5 1 B510A500 26,51
1 1/4” 300 20 5 B1106300 6,89 B5106300 8,35 2 1/2" 600 1 B510A600 31,22 RACCORDI IN ACCIAIO AL CARBONIO
1 1/4” 400 16 2 B1106400 8,62 B5106400 10,67 2 1/2" 800 1 B510A800 41,50
1 1/4” 500 16 2 B1106500 10,94 B5106500 12,79 2 1/2" 1000 1 B51A1000 48,32
1 1/4" 600 1 B5106600 15,98 3" 80 12 4 B1100B80 9,08 B5100B80 9,74
1 1/4" 800 1 B5106800 19,95 3" 100 8 2 B110B100 9,61 B510B100 10,54
1 1/4" 1000 1 B5161000 23,93 3" 120 8 2 B110B120 11,73 B510B120 12,86
1 1/2" 40 80 10 B1100740 2,85 B5100740 3,05 3" 140 4 2 B110B140 11,93 B510B140 12,93
1 1/2" 50 40 10 B1100750 2,72 B5100750 3,18 3" 150 6 2 B110B150 12,06 B510B150 13,26
1 1/2" 60 50 10 B1100760 2,98 B5100760 3,18 3" 160 4 2 B510B160 14,52
1 1/2" 80 40 10 B1100780 2,85 B5100780 3,18 3" 180 4 2 B110B180 13,39 B510B180 14,91
1 1/2" 100 30 5 B1107100 3,18 B5107100 3,65 3" 200 4 2 B110B200 13,99 B510B200 16,17
1 1/2" 120 25 5 B1107120 3,84 B5107120 4,44 3" 250 4 2 B110B250 17,37 B510B250 19,02
1 1/2" 140 20 5 B1107140 4,18 B5107140 4,64 3" 300 6 2 B110B300 19,82 B510B300 22,07
1 1/2" 150 20 5 B1107150 4,31 B5107150 4,71 3" 400 4 2 B510B400 32,61
1 1/2" 160 20 5 B1107160 4,77 B5107160 5,37 3" 500 4 2 B510B500 38,65
1 1/2" 180 20 5 B1107180 5,44 B5107180 5,90 4" 80 5 5 B1100C80 16,04 B5100C80 17,37
1 1/2" 200 15 5 B1107200 5,30 B5107200 5,97 4" 100 4 2 B110C100 17,70 B510C100 18,10
1 1/2" 250 10 5 B1107250 7,03 B5107250 8,35 4" 120 3 1 B110C120 20,55 B510C120 20,68
1 1/2" 300 20 5 B1107300 8,29 B5107300 9,35 4" 140 3 1 B110C140 20,95 B510C140 21,81
1 1/2" 400 12 2 B1107400 10,54 B5107400 12,26 4" 150 3 1 B110C150 21,08 B510C150 22,94
1 1/2" 500 12 2 B1107500 13,06 B5107500 14,85 4" 160 3 1 B110C160 22,14 B510C160 23,86
1 1/2" 600 1 B5107600 18,63 4" 180 2 1 B110C180 22,94 B510C180 24,46
1 1/2" 800 1 B5107800 23,27 4" 200 6 2 B110C200 23,93 B510C200 26,45
1 1/2" 1000 1 B5171000 * 4" 250 4 2 B110C250 29,23 B510C250 30,69
2" 40 40 5 B5100840 3,38 4" 300 3 1 B110C300 32,61 B510C300 38,25
2" 50 40 5 B5100850 3,51 4" 400 3 1 B510C400 49,45
2" 60 30 5 B1100860 3,65 B5100860 3,91 4" 500 3 1 B510C500 60,78
2" 80 24 6 B1100880 3,98 B5100880 4,04
2" 100 20 5 B1108100 4,04 B5108100 4,57
2" 120 16 4 B1108120 4,71 B5108120 5,77
2" 140 12 4 B1108140 5,24 B5108140 6,10
2" 150 12 4 B1108150 5,37 B5108150 6,23
2" 160 12 4 B1108160 5,77 B5108160 7,09
2" 180 12 4 B1108180 6,50 B5108180 7,56
2" 200 12 4 B1108200 6,83 B5108200 8,02
2" 250 9 3 B1108250 9,35 B5108250 10,54
2" 300 12 4 B1108300 10,61 B5108300 12,79
2" 400 10 2 B1108400 13,12 B5108400 16,90
2" 500 12 2 B1108500 16,44 B5108500 20,22
2" 600 1 B5108600 25,26
2" 800 1 B5108800 31,55
* A richiesta
