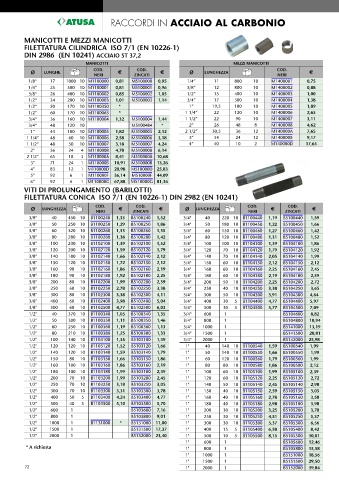

Page 72 - ATUSA - LISTINO 2023

RACCORDI IN ACCIAIO AL CARBONIO

MANICOTTI E MEZZI MANICOTTI
FILETTATURA CILINDRICA ISO 7/1 (EN 10226-1)
DIN 2986 (EN 10241) ACCIAIO ST 37,2
MANICOTTI MEZZI MANICOTTI
Ø LUNGHE. COD. € COD. € Ø LUNGHEZZA COD. €
NERI ZINCATI NERI
1/8” 17 1000 10 M1100000 0,81 M5100000 0,95 1/4” 11 800 10 M1400001 0,75
1/4” 25 500 10 M1100001 0,81 M5100001 0,96 3/8” 12 800 10 M1400002 0,88
3/8” 26 400 10 M1100002 0,85 M5100002 1,05 1/2” 15 400 10 M1400003 1,00
1/2” 34 200 10 M1100003 1,01 M5100003 1,14 3/4” 17 300 10 M1400004 1,38
1/2” 50 170 10 M1100350 * 1” 19,5 180 10 M1400005 1,89
1/2” 60 170 10 M1100063 * 1 1/4” 22 120 10 M1400006 2,65
3/4” 36 160 10 M1100004 1,32 M5100004 1,44 1 1/2” 22 90 10 M1400007 3,11
3/4” 48 120 10 M5100484 * 2” 26 48 8 M1400008 4,62
1” 43 100 10 M1100005 1,82 M5100005 2,12 2 1/2” 30,5 36 12 M140000A 7,65
1 1/4” 48 60 10 M1100006 2,58 M5100006 3,18 3” 34 24 12 M140000B 9,17
1 1/2” 48 50 10 M1100007 3,18 M5100007 4,24 4” 40 10 2 M140000D 17,65
2” 56 24 4 M1100008 4,70 M5100008 6,14
2 1/2” 65 18 3 M110000A 8,41 M510000A 10,68
3” 71 24 1 M110000B 10,91 M510000B 13,26
4” 83 12 1 M110000D 20,98 M510000D 25,83
5” 92 6 1 M110000F 36,14 M510000F 44,09
6” 92 4 1 M110000G 67,88 M510000G 81,36
VITI DI PROLUNGAMENTO (BARILOTTI)
FILETTATURA CONICA ISO 7/1 (EN 10226-1) DIN 2982 (EN 10241)

COD. COD. COD. COD.
Ø LUNGHEZZA € € Ø LUNGHEZZA € €
NERI ZINCATI NERI ZINCATI
3/8" 40 450 10 B1100240 1,33 B5100240 1,52 3/4" 40 220 10 B1100440 1,19 B5100440 1,59
3/8" 50 250 10 B1100250 1,29 B5100250 1,86 3/4" 50 180 10 B1100450 1,22 B5100450 1,66
3/8" 60 320 10 B1100260 1,33 B5100260 1,35 3/4" 60 150 10 B1100460 1,27 B5100460 1,42
3/8" 80 280 10 B1100280 1,38 B5100280 1,42 3/4" 80 120 10 B1100480 1,31 B5100480 1,52
3/8" 100 230 10 B1102100 1,39 B5102100 1,52 3/4" 100 100 10 B1104100 1,39 B5104100 1,86
3/8" 120 200 10 B1102120 1,59 B5102120 1,79 3/4" 120 70 10 B1104120 1,79 B5104120 1,92
3/8" 140 180 10 B1102140 1,66 B5102140 2,12 3/4" 140 70 10 B1104140 2,05 B5104140 1,99
3/8" 150 120 10 B1102150 1,72 B5102150 2,12 3/4" 150 60 10 B1104150 2,12 B5104150 2,12
3/8" 160 90 10 B1102160 1,86 B5102160 2,19 3/4" 160 60 10 B1104160 2,25 B5104160 2,45
3/8" 180 90 10 B1102180 1,92 B5102180 2,25 3/4" 180 60 10 B1104180 2,19 B5104180 2,59
3/8" 200 80 10 B1102200 1,99 B5102200 2,39 3/4" 200 50 10 B1104200 2,25 B5104200 2,72
3/8" 250 60 10 B1102250 2,78 B5102250 3,38 3/4" 250 40 10 B1104250 3,38 B5104250 3,65
3/8" 300 80 10 B1102300 3,38 B5102300 4,11 3/4" 300 50 10 B1104300 3,91 B5104300 4,64
3/8" 400 60 10 B1102400 3,98 B5102400 5,04 3/4" 400 30 5 B1104400 4,77 B5104400 5,97
3/8" 500 60 10 B1102500 4,77 B5102500 6,03 3/4" 500 30 5 B1104500 5,77 B5104500 7,09
1/2" 40 370 10 B1100340 1,05 B5100340 1,35 3/4" 600 1 B5104600 8,82
1/2" 50 300 10 B1100350 1,11 B5100350 1,46 3/4" 800 1 B5104800 10,94
1/2" 60 250 10 B1100360 1,19 B5100360 1,13 3/4" 1000 1 B5141000 13,19
1/2" 80 210 10 B1100380 1,25 B5100380 1,33 3/4" 1500 1 B5141500 20,81
1/2" 100 140 10 B1103100 1,35 B5103100 1,39 3/4" 2000 1 B5142000 25,98
1/2" 120 120 10 B1103120 1,52 B5103120 1,66 1" 40 140 10 B1100540 1,59 B5100540 1,99
1/2" 140 120 10 B1103140 1,59 B5103140 1,79 1" 50 140 10 B1100550 1,66 B5100550 1,99
1/2" 150 80 10 B1103150 1,66 B5103150 1,86 1" 60 120 10 B1100560 1,79 B5100560 1,99
1/2" 160 100 10 B1103160 1,86 B5103160 2,19 1" 80 80 10 B1100580 1,86 B5100580 2,12
1/2" 180 100 10 B1103180 1,99 B5103180 2,39 1" 100 60 10 B1105100 1,99 B5105100 2,39
1/2" 200 70 10 B1103200 1,99 B5103200 2,45 1" 120 60 10 B1105120 2,25 B5105120 2,72
1/2" 250 70 10 B1103250 3,18 B5103250 3,05 1" 140 50 10 B1105140 2,45 B5105140 2,98
1/2" 300 70 10 B1103300 3,31 B5103300 3,78 1" 150 40 10 B1105150 2,59 B5105150 3,05
1/2" 400 50 5 B1103400 4,24 B5103400 4,77 1" 160 40 10 B1105160 2,78 B5105160 3,58
1/2" 500 40 5 B1103500 5,10 B5103500 5,70 1" 180 40 10 B1105180 2,98 B5105180 3,98
1/2" 600 1 B5103600 7,16 1" 200 30 10 B1105200 3,25 B5105200 3,78
1/2" 800 1 B5103800 9,01 1" 250 30 10 B1105250 4,51 B5105250 5,37
1/2" 1000 1 B1131000 * B5131000 11,00 1" 300 30 10 B1105300 5,37 B5105300 6,56
1/2" 1500 1 B5131500 17,37 1" 400 15 5 B1105400 6,50 B5105400 8,42
1/2" 2000 1 B5132000 23,40 1" 500 10 5 B1105500 8,15 B5105500 10,01
1" 600 1 B5105600 12,46
* A richiesta 1" 800 1 B5105800 15,58
1" 1000 1 B5151000 18,56
1" 1500 1 B5151500 29,50
72 1" 2000 1 B5152000 39,84
