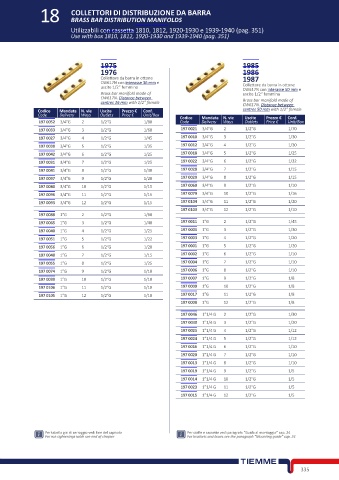

Page 355 - TIEMME - COMPONENTI IDRAULICI - FIDRA

18 COLLETTORI DI DISTRIBUZIONE DA BARRA
BRASS BAR DISTRIBUTION MANIFOLDS

Utilizzabili con cassetta 1810, 1812, 1920-1930 e 1939-1940 (pag. 351)
Use with box 1810, 1812, 1920-1930 and 1939-1940 (pag. 351)

1975 1985
1976 1986
Collettore da barra in ottone 1987
CW617N con interasse 36 mm e Collettore da barra in ottone
uscite 1/2” femmina CW617N con interasse 50 mm e
Brass bar manifold made of uscite 1/2” femmina
CW617N. Distance between Brass bar manifold made of
centres 36 mm with 1/2” female CW617N. Distance between
Codice Mandata N. vie Uscite Prezzo € Conf. centres 50 mm with 1/2” female
Code Delivery Ways Outlets Price € Unit/Box Codice Mandata N. vie Uscite Prezzo € Conf.
197 0052 3/4”G 2 1/2”G 1/80 Code Delivery Ways Outlets Price € Unit/Box
197 0033 3/4”G 3 1/2”G 1/60 197 0021 3/4”G 2 1/2”G 1/70
197 0027 3/4”G 4 1/2”G 1/45 197 0010 3/4”G 3 1/2”G 1/30
197 0038 3/4”G 5 1/2”G 1/35 197 0012 3/4”G 4 1/2”G 1/30
197 0042 3/4”G 6 1/2”G 1/25 197 0018 3/4”G 5 1/2”G 1/25
197 0031 3/4”G 7 1/2”G 1/25 197 0022 3/4”G 6 1/2”G 1/32
197 0041 3/4”G 8 1/2”G 1/30 197 0028 3/4”G 7 1/2”G 1/15
197 0097 3/4”G 9 1/2”G 1/20 197 0029 3/4”G 8 1/2”G 1/15
197 0080 3/4”G 10 1/2”G 1/15 197 0060 3/4”G 9 1/2”G 1/10
197 0096 3/4”G 11 1/2”G 1/15 197 0079 3/4”G 10 1/2”G 1/16
197 0093 3/4”G 12 1/2”G 1/15 197 0104 3/4”G 11 1/2”G 1/20
197 0103 3/4”G 12 1/2”G 1/10
197 0088 1”G 2 1/2”G 1/60
197 0065 1”G 3 1/2”G 1/40 197 0011 1”G 2 1/2”G 1/45
197 0040 1”G 4 1/2”G 1/25 197 0005 1”G 3 1/2”G 1/30
197 0051 1”G 5 1/2”G 1/22 197 0003 1”G 4 1/2”G 1/20
197 0056 1”G 6 1/2”G 1/20 197 0001 1”G 5 1/2”G 1/20
197 0048 1”G 7 1/2”G 1/15 197 0002 1”G 6 1/2”G 1/10
197 0055 1”G 8 1/2”G 1/25 197 0004 1”G 7 1/2”G 1/10
197 0074 1”G 9 1/2”G 1/10 197 0006 1”G 8 1/2”G 1/10
197 0039 1”G 10 1/2”G 1/10 197 0007 1”G 9 1/2”G 1/8
197 0106 1”G 11 1/2”G 1/10 197 0009 1”G 10 1/2”G 1/8
197 0105 1”G 12 1/2”G 1/10 197 0017 1”G 11 1/2”G 1/8
197 0008 1”G 12 1/2”G 1/8
197 0046 1”1/4 G 2 1/2”G 1/30
197 0030 1”1/4 G 3 1/2”G 1/20
197 0025 1”1/4 G 4 1/2”G 1/12
197 0024 1”1/4 G 5 1/2”G 1/12
197 0016 1”1/4 G 6 1/2”G 1/10
197 0020 1”1/4 G 7 1/2”G 1/10
197 0013 1”1/4 G 8 1/2”G 1/10
197 0019 1”1/4 G 9 1/2”G 1/5
197 0014 1”1/4 G 10 1/2”G 1/5
197 0023 1”1/4 G 11 1/2”G 1/5
197 0015 1”1/4 G 12 1/2”G 1/5

Per tabella giri di serraggio vedi fine del capitolo Per staffe e cassette vedi paragrafo “Guida al montaggio“ cap. 24
For nut tightenings table see end of chapter For brackets and boxes see the paragraph “Mounting guide“ cap. 24
