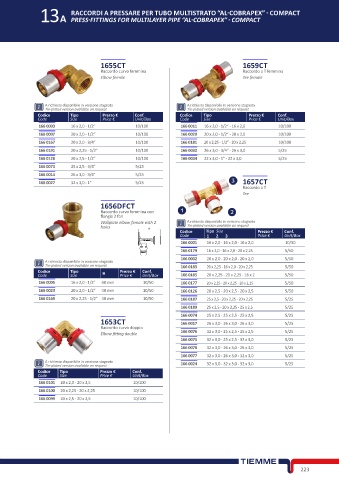

Page 243 - TIEMME - COMPONENTI IDRAULICI - FIDRA

RACCORDI A PRESSARE PER TUBO MULTISTRATO “AL-COBRAPEX” - COMPACT
13A PRESS-FITTINGS FOR MULTILAYER PIPE “AL-COBRAPEX” - COMPACT

1655CT 1659CT
Raccordo curvo femmina Raccordo a T femmina
Elbow female Tee female

A richiesta disponibile in versione stagnata A richiesta disponibile in versione stagnata
Tin-plated version available on request Tin-plated version available on request
Codice Tipo Prezzo € Conf. Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box Code Size Price € Unit/Box
166 0003 16 x 2,0 - 1/2” 10/100 166 0011 16 x 2,0 - 1/2” - 16 x 2,0 10/100
166 0007 20 x 2,0 - 1/2” 10/100 166 0020 20 x 2,0 - 1/2” - 20 x 2,0 10/100
166 0167 20 x 2,0 - 3/4” 10/100 166 0181 20 x 2,25 - 1/2” - 20 x 2,25 10/100
166 0191 20 x 2,25 - 1/2” 10/100 166 0032 26 x 3,0 - 3/4” - 26 x 3,0 5/25
166 0128 20 x 2,5 - 1/2” 10/100 166 0034 32 x 3,0 - 1” - 32 x 3,0 5/25
166 0073 25 x 2,5 - 3/4” 5/25
166 0014 26 x 3,0 - 3/4” 5/25
166 0027 32 x 3,0 - 1” 5/25 1657CT
Raccordo a T
Tee
1656DFCT
Raccordo curvo femmina con
flangia 2 fori
Wallplate elbow female with 2 A richiesta disponibile in versione stagnata
holes H Tin-plated version available on request
Codice Tipo Size Prezzo € Conf.
Code 1 2 3 Price € Unit/Box
166 0001 16 x 2,0 - 16 x 2,0 - 16 x 2,0 10/50
166 0179 16 x 2,0 - 16 x 2,0 - 20 x 2,25 5/50
166 0002 20 x 2,0 - 20 x 2,0 - 20 x 2,0 5/50
A richiesta disponibile in versione stagnata
Tin-plated version available on request 166 0183 20 x 2,25 - 16 x 2,0 - 20 x 2,25 5/50
Codice Tipo Prezzo € Conf.
Code Size H Price € Unit/Box 166 0185 20 x 2,25 - 20 x 2,25 - 16 x 2 5/50
166 0005 16 x 2,0 - 1/2” 40 mm 10/50 166 0177 20 x 2,25 - 20 x 2,25 - 20 x 2,25 5/50
166 0023 20 x 2,0 - 1/2” 40 mm 10/50 166 0126 20 x 2,5 - 20 x 2,5 - 20 x 2,5 5/50
166 0169 20 x 2,25 - 1/2” 40 mm 10/50 166 0187 25 x 2,5 - 20 x 2,25 - 20 x 2,25 5/25
166 0189 25 x 2,5 - 20 x 2,25 - 25 x 2,5 5/25
166 0074 25 x 2,5 - 25 x 2,5 - 25 x 2,5 5/25
1653CT 166 0017 26 x 3,0 - 26 x 3,0 - 26 x 3,0 5/25
Raccordo curvo doppio
Elbow fitting double 166 0076 32 x 3,0 - 25 x 2,5 - 25 x 2,5 5/25
166 0075 32 x 3,0 - 25 x 2,5 - 32 x 3,0 5/25
166 0078 32 x 3,0 - 26 x 3,0 - 26 x 3,0 5/25
166 0077 32 x 3,0 - 26 x 3,0 - 32 x 3,0 5/25
A richiesta disponibile in versione stagnata 166 0024 32 x 3,0 - 32 x 3,0 - 32 x 3,0 5/25
Tin-plated version available on request
Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box
166 0101 20 x 2,0 - 20 x 2,5 10/100
166 0100 20 x 2,25 - 20 x 2,25 10/100
166 0099 20 x 2,5 - 20 x 2,5 10/100

223
