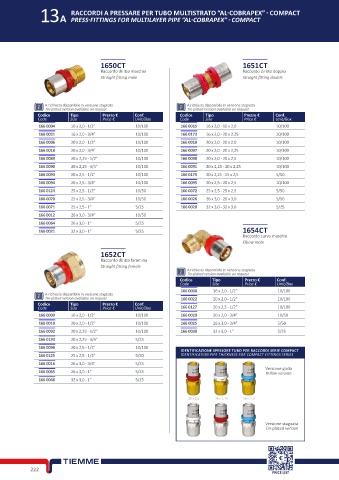

RACCORDI A PRESSARE PER TUBO MULTISTRATO “AL-COBRAPEX” - COMPACT
13A PRESS-FITTINGS FOR MULTILAYER PIPE “AL-COBRAPEX” - COMPACT

1650CT 1651CT
Raccordo diritto maschio Raccordo diritto doppio
Straight fitting male Straight fitting double

A richiesta disponibile in versione stagnata A richiesta disponibile in versione stagnata
Tin-plated version available on request Tin-plated version available on request
Codice Tipo Prezzo € Conf. Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box Code Size Price € Unit/Box
166 0004 16 x 2,0 - 1/2” 10/100 166 0015 16 x 2,0 - 16 x 2,0 10/100
166 0031 16 x 2,0 - 3/4” 10/100 166 0173 16 x 2,0 - 20 x 2,25 10/100
166 0006 20 x 2,0 - 1/2” 10/100 166 0019 20 x 2,0 - 20 x 2,0 10/100
166 0018 20 x 2,0 - 3/4” 10/100 166 0097 20 x 2,0 - 20 x 2,25 10/100
166 0089 20 x 2,25 - 1/2” 10/100 166 0098 20 x 2,0 - 20 x 2,5 10/100
166 0090 20 x 2,25 - 3/4” 10/100 166 0091 20 x 2,25 - 20 x 2,25 10/100
166 0093 20 x 2,5 - 1/2” 10/100 166 0175 20 x 2,25 - 25 x 2,5 5/50
166 0094 20 x 2,5 - 3/4” 10/100 166 0095 20 x 2,5 - 20 x 2,5 10/100
166 0124 25 x 2,5 - 1/2” 10/50 166 0072 25 x 2,5 - 25 x 2,5 5/50
166 0070 25 x 2,5 - 3/4” 10/50 166 0026 26 x 3,0 - 26 x 3,0 5/50
166 0071 25 x 2,5 - 1” 5/25 166 0028 32 x 3,0 - 32 x 3,0 5/25
166 0012 26 x 3,0 - 3/4” 10/50
166 0064 26 x 3,0 - 1” 5/25
166 0021 32 x 3,0 - 1” 5/25 1654CT
Raccordo curvo maschio
Elbow male
1652CT
Raccordo diritto femmina
Straight fitting female
A richiesta disponibile in versione stagnata
Tin-plated version available on request
Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box
166 0008 16 x 2,0 - 1/2” 10/100
A richiesta disponibile in versione stagnata
Tin-plated version available on request 166 0022 20 x 2,0 - 1/2” 10/100
Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box 166 0127 20 x 2,5 - 1/2” 10/100
166 0009 16 x 2,0 - 1/2” 10/100 166 0029 20 x 2,0 - 3/4” 10/50
166 0010 20 x 2,0 - 1/2” 10/100 166 0025 26 x 3,0 - 3/4” 5/50
166 0092 20 x 2,25 - 1/2” 10/100 166 0030 32 x 3,0 - 1” 5/25
166 0193 20 x 2,25 - 3/4” 5/25
166 0096 20 x 2,5 - 1/2” 10/100
IDENTIFICAZIONE SPESSORE TUBO PER RACCORDI SERIE COMPACT
166 0125 25 x 2,5 - 1/2” 5/50 IDENTIFICATION PIPE THICKNESS FOR COMPACT FITTINGS SERIES
166 0016 26 x 3,0 - 3/4” 5/25
Versione gialla
166 0065 26 x 3,0 - 1” 5/25 Yellow version
166 0066 32 x 3,0 - 1” 5/25

20 x 2,0 20 x 2,25 20 x 2,5

Versione stagnata
Tin-plated version

222
