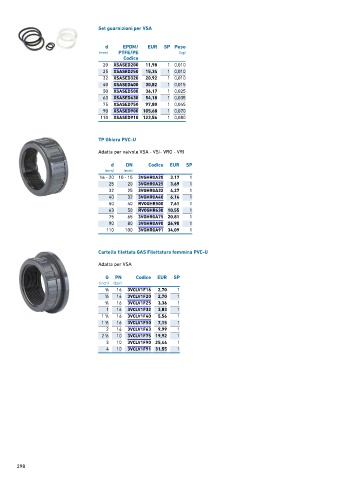

Page 296 - GEORGFISCHER - LISTINO 884 - FIDRA

Set guarnizioni per VSA

d EPDM/ EUR SP Peso
(mm) PTFE/PE (kg)
Codice
20 XSASED200 11,98 1 0,010
25 XSASED250 15,34 1 0,010
32 XSASED320 20,92 1 0,010
40 XSASED400 30,82 1 0,015
50 XSASED500 36,17 1 0,025
63 XSASED630 54,18 1 0,035
75 XSASED750 97,80 1 0,045
90 XSASED900 105,68 1 0,070
110 XSASED910 123,56 1 0,080

TP Ghiera PVC-U

Adatta per valvole VSA - VSI- VRO - VRI

d DN Codice EUR SP
(mm) (mm)
16 ‐ 20 10 ‐ 15 3VGHR0A20 3,17 1
25 20 3VGHR0A25 3,69 1
32 25 3VGHR0A32 4,27 1
40 32 3VGHR0A40 6,14 1
50 40 RV0GHR500 7,61 1
63 50 RV0GHR630 10,55 1
75 65 3VGHR0A75 20,81 1
90 80 3VGHR0A90 26,90 1
110 100 3VGHR0A91 34,09 1

Cartella filettata GAS Filettatura femmina PVC-U
Adatta per VSA

G PN Codice EUR SP
(inch) (bar)
3 16 3VCLV1F16 2,70 1
∕8
1 ∕2 16 3VCLV1F20 2,70 1
3 16 3VCLV1F25 3,36 1
∕4
1 16 3VCLV1F32 3,83 1
1 16 3VCLV1F40 5,56 1
1 ∕4
1
1 ∕2 16 3VCLV1F50 7,15 1
2 16 3VCLV1F63 9,99 1
1
2 ∕2 10 3VCLV1F75 19,92 1
3 10 3VCLV1F90 25,44 1
4 10 3VCLV1F91 31,55 1
