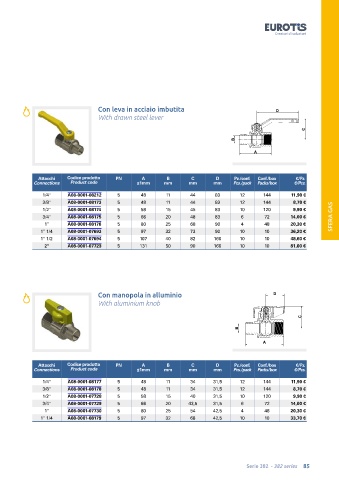

Page 85 - EUROTIS - CATALISTINO VALVOLE 2022 - FIDRA

Con leva in acciaio imbutita D D
With drawn steel lever

C C
B
B
A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
1/4" A08-0001-08212 5 48 11 44 83 12 144 11,90 €
3/8" A08-0001-08173 5 48 11 44 83 12 144 8,70 €
1/2" A08-0001-08174 5 58 15 45 83 10 120 9,90 €
3/4" A08-0001-08175 5 66 20 48 83 6 72 14,00 € SFERA GAS
1" A08-0001-08176 5 80 25 68 90 4 48 20,30 €
1" 1/4 A08-0001-07693 5 97 32 73 90 10 10 36,20 €
1" 1/2 A08-0001-07694 5 107 40 82 160 10 10 48,60 €
2" A08-0001-07723 5 131 50 90 160 10 10 81,00 €

Con manopola in alluminio D D
With aluminium knob

C C

B B
A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
1/4" A08-0001-08177 5 48 11 34 31,5 12 144 11,90 €
3/8" A08-0001-08178 5 48 11 34 31,5 12 144 8,70 €
1/2" A08-0001-07728 5 58 15 40 31,5 10 120 9,90 €
3/4" A08-0001-07729 5 66 20 43,5 31,5 6 72 14,00 €
1" A08-0001-07730 5 80 25 54 42,5 4 48 20,30 €
1" 1/4 A08-0001-08179 5 97 32 68 42,5 10 10 33,70 €

Serie 382 - 382 series 85
