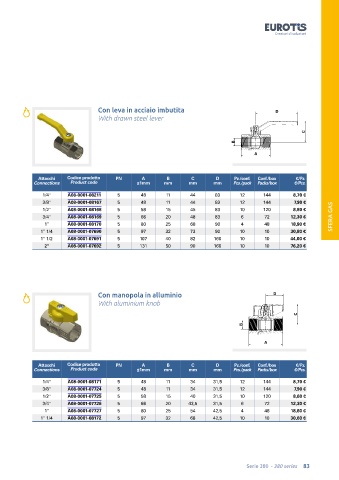

Page 83 - EUROTIS - CATALISTINO VALVOLE 2022 - FIDRA

Con leva in acciaio imbutita D D
With drawn steel lever

C C
B B
A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
1/4" A08-0001-08211 5 48 11 44 83 12 144 8,70 €
3/8" A08-0001-08167 5 48 11 44 83 12 144 7,90 €
1/2" A08-0001-08168 5 58 15 45 83 10 120 8,80 €
3/4" A08-0001-08169 5 66 20 48 83 6 72 12,30 € SFERA GAS
1" A08-0001-08170 5 80 25 68 90 4 48 18,90 €
1" 1/4 A08-0001-07690 5 97 32 73 90 10 10 30,80 €
1" 1/2 A08-0001-07691 5 107 40 82 160 10 10 44,00 €
2" A08-0001-07692 5 131 50 90 160 10 10 76,20 €

Con manopola in alluminio D D
With aluminium knob

C C
B B

A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
1/4" A08-0001-08171 5 48 11 34 31,5 12 144 8,70 €
3/8" A08-0001-07724 5 48 11 34 31,5 12 144 7,90 €
1/2" A08-0001-07725 5 58 15 40 31,5 10 120 8,60 €
3/4" A08-0001-07726 5 66 20 43,5 31,5 6 72 12,30 €
1" A08-0001-07727 5 80 25 54 42,5 4 48 18,60 €
1" 1/4 A08-0001-08172 5 97 32 68 42,5 10 10 30,60 €

Serie 380 - 380 series 83
