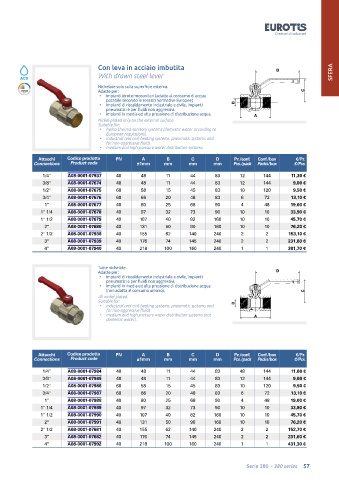

Page 57 - EUROTIS - CATALISTINO VALVOLE 2022 - FIDRA

Con leva in acciaio imbutita D D
With drawn steel lever SFERA
ACS
Nichelate solo sulla superficie esterna.
Adatte per: C C
• impianti idrotermosanitari (adatte al consumo di acqua
potabile secondo le recenti normative Europee)
• impianti di riscaldamento industriale e civile, impianti B B
pneumatici e per fluidi non aggressivi.
• impianti in media ed alta pressione di distribuzione acqua. A A
Nickel-plated only on the external surface.
Suitable for:
• hydro-thermo-sanitary systems (domestic water according to
European regulations).
• industrial and civil heating systems, pneumatic systems and
for non-aggressive fluids.
• medium and high pressure water distribution systems.
Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.

1/4" A08-0001-07937 40 48 11 44 83 12 144 11,30 €
3/8" A08-0001-07674 40 48 11 44 83 12 144 9,00 €
1/2" A08-0001-07675 60 58 15 45 83 10 120 9,50 €
3/4" A08-0001-07676 60 66 20 48 83 6 72 13,10 €
1" A08-0001-07677 40 80 25 68 90 4 48 19,00 €
1" 1/4 A08-0001-07678 40 97 32 73 90 10 10 33,90 €
1" 1/2 A08-0001-07679 40 107 40 82 160 10 10 45,70 €
2" A08-0001-07680 40 131 50 90 160 10 10 76,20 €
2" 1/2 A08-0001-07938 40 155 62 140 240 2 2 153,10 €
3" A08-0001-07939 40 176 74 145 240 2 2 231,60 €
4" A08-0001-07940 40 218 100 160 240 1 1 381,70 €

Tutte nichelate.
Adatte per: D D
• impianti di riscaldamento industriale e civile, impianti
pneumatici e per fluidi non aggressivi.
• impianti in media ed alta pressione di distribuzione acqua
(non adatta al consumo umano). C C
All nickel plated.
Suitable for: B B
• industrial and civil heating systems, pneumatic systems and
for non-aggressive fluids.
• medium and high pressure water distribution systems (not A A
domestic water).

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.

1/4" A08-0001-07984 40 48 11 44 83 48 144 11,00 €
3/8" A08-0001-07985 40 48 11 44 83 12 144 9,00 €
1/2" A08-0001-07986 60 58 15 45 83 10 120 9,50 €
3/4" A08-0001-07987 60 66 20 48 83 6 72 13,10 €
1" A08-0001-07988 40 80 25 68 90 4 48 19,00 €
1" 1/4 A08-0001-07989 40 97 32 73 90 10 10 33,90 €
1" 1/2 A08-0001-07990 40 107 40 82 160 10 10 45,70 €
2" A08-0001-07991 40 131 50 90 160 10 10 76,20 €
2" 1/2 A08-0001-07681 40 155 62 140 240 2 2 152,70 €
3" A08-0001-07682 40 176 74 145 240 2 2 231,60 €
4" A08-0001-07992 40 218 100 160 240 1 1 431,30 €

Serie 380 - 380 series 57
