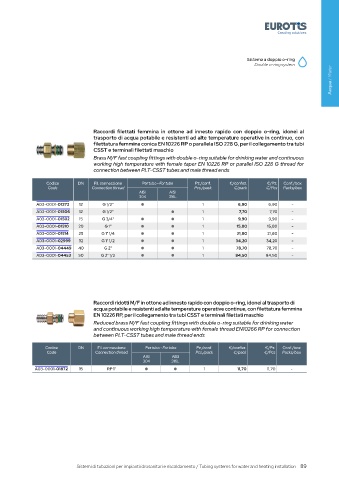

Page 89 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Sistema a doppio o-ring
Double o-ring system
Acqua / Water

Raccordi filettati femmina in ottone ad innesto rapido con doppio o-ring, idonei al
trasporto di acqua potabile e resistenti ad alte temperature operative in continuo, con
filettatura femmina conica EN 10226 RP o parallela ISO 228 G, per il collegamento tra tubi
CSST e terminali filettati maschio
Brass M/F fast coupling fittings with double o-ring suitable for drinking water and continuous
working high temperature with female taper EN 10226 RP or parallel ISO 228 G thread for
connection between PLT-CSST tubes and male thread ends

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
AISI AISI
304 316L
A03-0001-01372 12 G 1/2" 1 6,90 6,90 -
A03-0001-01506 12 G 1/2" 1 7,70 7,70 -
A03-0001-01502 15 G 3/4" 1 9,90 9,90 -
A03-0001-01510 20 G 1" 1 15,80 15,80 -
A03-0001-01514 25 G 1" 1/4 1 21,80 21,80 -
A03-0001-02999 32 G 1" 1/2 1 34,20 34,20 -
A03-0001-04449 40 G 2" 1 78,70 78,70 -
A03-0001-04453 50 G 2" 1/2 1 84,50 84,50 -

Raccordi ridotti M/F in ottone ad innesto rapido con doppio o-ring, idonei al trasporto di
acqua potabile e resistenti ad alte temperature operative continue, con filettatura femmina
EN 10226 RP, per il collegamento tra tubi CSST e terminali filettati maschio
Reduced brass M/F fast coupling fittings with double o-ring suitable for drinking water
and continuous working high temperature with female thread EN10266 RP for connection
between PLT-CSST tubes and male thread ends

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
AISI AISI
304 316L
A03-0001-01872 15 RP 1" 1 11,70 11,70 -

Sistemi di tubazioni per impianti idrosanitari e riscaldamento / Tubing systems for water and heating installation 89
