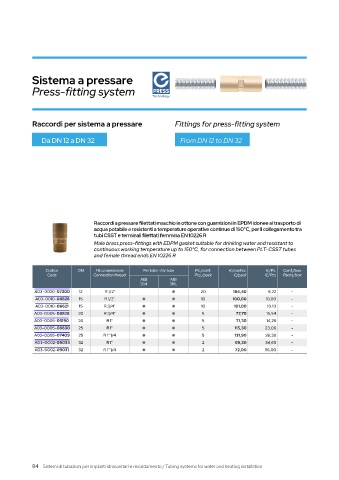

Page 84 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Sistema a pressare
Press-fitting system

Raccordi per sistema a pressare Fittings for press-fitting system

Da DN 12 a DN 32 From DN 12 to DN 32

Raccordi a pressare filettati maschio in ottone con guarnizioni in EPDM idonee al trasporto di
acqua potabile e resistenti a temperature operative continue di 150°C, per il collegamento tra
tubi CSST e terminali filettati femmina EN 10226 R
Male brass press-fittings with EDPM gasket suitable for drinking water and resistant to
continuous working temperature up to 150°C, for connection between PLT-CSST tubes
and female thread ends EN 10226 R

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
AISI AISI
304 316L
A03-0020-07200 12 R 1/2" 20 184,40 9,22 -
A03-0010-08826 15 R 1/2" 10 100,00 10,00 -
A03-0010-06621 15 R 3/4" 10 101,00 10,10 -
A03-0005-08828 20 R 3/4" 5 77,70 15,54 -
A03-0005-05190 20 R 1" 5 71,30 14,26 -
A03-0005-08830 25 R 1" 5 115,30 23,06 -
A03-0005-07409 25 R 1" 1/4 5 131,90 26,38 -
A03-0002-09033 32 R 1" 2 69,30 34,65 -
A03-0002-09031 32 R 1" 1/4 2 72,00 36,00 -

84 Sistemi di tubazioni per impianti idrosanitari e riscaldamento / Tubing systems for water and heating installation
