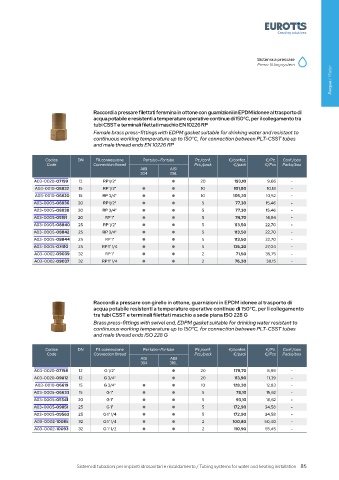

Page 85 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Sistema a pressare
Press-fitting system
Acqua / Water

Raccordi a pressare filettati femmina in ottone con guarnizioni in EPDM idonee al trasporto di
acqua potabile e resistenti a temperature operative continue di 150°C, per il collegamento tra
tubi CSST e terminali filettati maschio EN 10226 RP
Female brass press-fittings with EDPM gasket suitable for drinking water and resistant to
continuous working temperature up to 150°C, for connection between PLT-CSST tubes
and male thread ends EN 10226 RP

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
AISI AISI
304 316L
A03-0020-07199 12 RP 1/2" 20 193,10 9,66 -
A03-0010-08832 15 RP 1/2" 10 101,80 10,18 -
A03-0010-06620 15 RP 3/4" 10 105,20 10,52 -
A03-0005-08836 20 RP 1/2" 5 77,30 15,46 -
A03-0005-08838 20 RP 3/4" 5 77,30 15,46 -
A03-0005-05191 20 RP 1" 5 74,70 14,94 -
A03-0005-08840 25 RP 1/2" 5 113,50 22,70 -
A03-0005-08842 25 RP 3/4" 5 113,50 22,70 -
A03-0005-08844 25 RP 1" 5 113,50 22,70 -
A03-0005-07410 25 RP 1" 1/4 5 135,20 27,04 -
A03-0002-09039 32 RP 1" 2 71,50 35,75 -
A03-0002-09037 32 RP 1" 1/4 2 76,30 38,15 -

Raccordi a pressare con girello in ottone, guarnizioni in EPDM idonee al trasporto di
acqua potabile resistenti a temperature operative continue di 150°C, per il collegamento
tra tubi CSST e terminali filettati maschio a sede piana ISO 228 G
Brass press-fittings with swivel end, EDPM gasket suitable for drinking water resistant to
continuous working temperature up to 150°C, for connection between PLT-CSST tubes
and male thread ends ISO 228 G

Codice DN Fil. connessione Per tubo - For tube Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
AISI AISI
304 316L
A03-0020-07198 12 G 1/2" 20 179,70 8,99 -
A03-0020-09812 12 G 3/4" 20 113,90 11,39 -
A03-0010-06619 15 G 3/4" 10 128,30 12,83 -
A03-0005-06633 15 G 1" 5 78,10 15,62 -
A03-0005-05541 20 G 1" 5 93,10 18,62 -
A03-0005-09851 25 G 1" 5 172,90 34,58 -
A03-0005-09563 25 G 1" 1/4 5 172,90 34,58 -
A03-0002-10085 32 G 1" 1/4 2 100,80 50,40 -
A03-0002-10093 32 G 1" 1/2 2 110,90 55,45 -

Sistemi di tubazioni per impianti idrosanitari e riscaldamento / Tubing systems for water and heating installation 85
