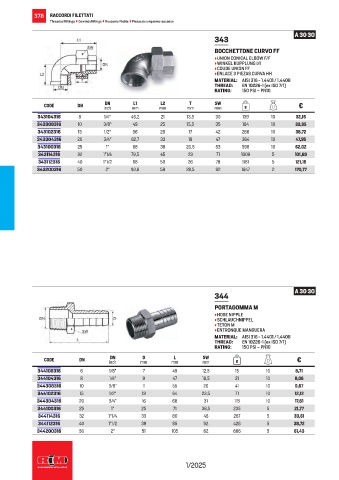

Page 380 - RACCORDERIEMETALLICHE - LISTINO 2025

378 RACCORDI FILETTATI
Threaded fittings • Gewindefittings • Raccords filetés • Piezas de empalme roscadas

A 30 30
343
BOCCHETTONE CURVO FF
• UNION CONICAL ELBOW F/F
• WINKEL KUPPLUNG I/I
• COUDE UNION FF
• ENLACE 3 PIEZAS CURVA HH
MATERIAL: AISI 316 - 1.4401 / 1.4408
THREAD: EN 10226-1 (ex ISO 7/1)
RATING: 150 PSI – PN10

DN
L1
T
L2
CODE DN inch mm mm mm SW g €
mm
343104316 8 1/4” 46,2 21 13,5 30 139 10 32,16
343308316 10 3/8” 49 25 15,5 35 164 10 33,95
343102316 15 1/2” 56 28 17 42 266 10 38,72
343304316 20 3/4” 62,7 33 19 47 364 10 47,95
343100316 25 1” 68 38 20,5 53 598 10 62,02
343114316 32 1”1/4 79,5 45 23 71 1009 5 101,69
343112316 40 1”1/2 88 50 26 78 1181 5 121,16
343200316 50 2” 93,8 58 28,5 92 1847 2 170,77

A 30 30
344

PORTAGOMMA M
• HOSE NIPPLE
• SCHLAUCHNIPPEL
• TETON M
• ENTRONQUE MANGUERA
MATERIAL: AISI 316 - 1.4401 / 1.4408
THREAD: EN 10226-1 (ex ISO 7/1)
RATING: 150 PSI – PN10

L
D
DN
CODE DN inch mm mm SW g €
mm
344108316 6 1/8” 7 45 12,5 15 10 8,71
344104316 8 1/4” 9 47 16,5 31 10 8,06
344308316 10 3/8” 11 55 20 41 10 9,67
344102316 15 1/2” 13 64 23,5 71 10 12,12
344304316 20 3/4” 16 68 31 118 10 17,61
344100316 25 1” 25 71 38,5 235 5 21,77
344114316 32 1”1/4 33 80 46 267 5 30,61
344112316 40 1”1/2 39 95 52 428 5 38,72
344200316 50 2” 51 105 62 666 5 61,43
