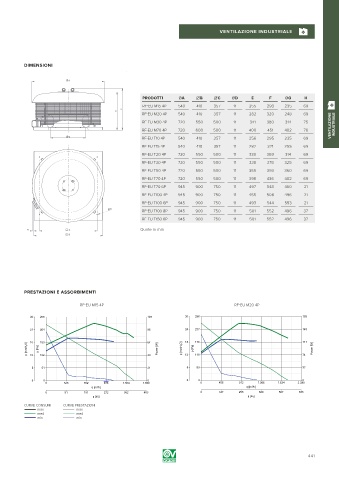

Page 441 - VORTICE - CATALOGO 2019

VENTILAZIONE INDUSTRIALE

DIMENSIONI A

A

F
PRODOTTI ØA †B †C ØD E F ØG H
E
RF-EU M15 4P 540 410 357 11 255 293 235 69
F
E
RF-EU M20 4P 540 410 357 11 282 320 248 69
G RF-EU M30 4P 720 550 500 11 341 380 314 75 INDUSTRIALE
RF-EU M70 4P 720 600 500 11 400 451 402 76 VENTILAZIONE
G
RF-EU T10 4P 540 410 357 11 256 295 235 69
RF-EU T15 4P 540 410 357 11 282 321 255 69
RF-EU T20 4P 720 550 500 11 330 369 314 69
RF-EU T30 4P 720 550 500 11 338 378 325 69
RF-EU T50 4P 720 550 500 11 355 393 360 69
RF-EU T70 4P 720 550 500 11 398 436 402 69
RF-EU T70 6P 945 900 750 11 497 548 460 21
RF-EU T100 4P 945 900 750 11 455 506 496 21
RF-EU T100 6P 945 900 750 11 493 544 553 21
D
RF-EU T100 8P 945 900 750 11 501 552 496 37
RF-EU T150 6P 945 900 750 11 501 552 496 37
D
Quote in mm
H C
B
H C
B

PRESTAZIONI E ASSORBIMENTI
RF-EU M15 4P RF-EU M20 4P

26 255 107 30 296 185

21 204 86 24 237 148

p [mmH O] 16 p [Pa] 153 64 Power [W] Power [W] Power [W] Power [W] p [mmH O] 18 p [Pa] 178 111 Power [W] Power [W] Power [W] Power [W]
118
74
12
43
10
102
5 51 21 6 59 37
0 0 0 0 0 0
0 326 652 978 1.304 1.630 0 456 912 1.368 1.824 2.280
q [m³/h] q [m³/h]
0 91 181 272 362 453 0 127 253 380 507 633
q [l/s] q [l/s]
CURVE CONSUMI CURVE PRESTAZIONI
max max
med med
min min

441
