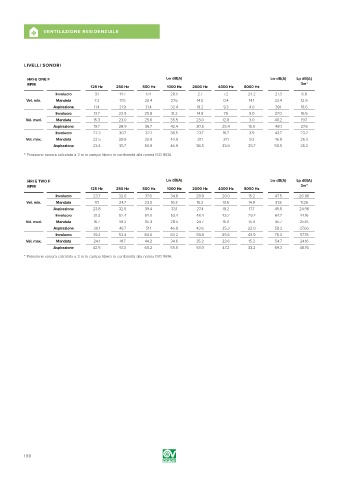

Page 196 - VORTICE - CATALOGO 2019

A VENTILAZIONE RESIDENZIALE

LIVELLI SONORI

HRI-E ONE F Lw dB(A) Lw dB(A) Lp dB(A)
RPM 3m*
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz
Involucro 3.1 14.7 17.4 20.5 2.7 7.2 24.2 27.3 6.8
Vel. min. Mandata 7.3 17.6 20.4 27.6 14.6 0.4 14.1 33.4 12.9
Aspirazione 11.4 21.9 31.4 32.4 19.2 9.3 4.0 39.1 18.6
Involucro 13.7 23.9 25.8 31.2 14.8 7.5 9.0 37.0 16.5
Vel. med. Mandata 15.3 23.0 25.6 35.5 23.0 12.8 3.0 40.2 19.7
Aspirazione 19.7 28.9 36.7 42.4 30.5 25.4 15.5 48.1 27.6
Involucro 22.3 30.7 32.1 36.5 23.7 16.7 3.9 43.7 23.2
Vel. max. Mandata 22.5 29.9 32.9 40.9 31.1 21.1 9.3 46.8 26.3
Aspirazione 23.4 35.7 50.9 46.9 38.5 33.9 25.7 55.5 35.2
* Pressione sonora calcolata a 3 m in campo libero in conformità alla norma ISO 9614.

HRI-E TWO F Lw dB(A) Lw dB(A) Lp dB(A)
RPM 3m*
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz
Involucro 23.7 32.0 37.6 34.8 28.9 20.0 15.2 47.5 26.96
Vel. min. Mandata 17.1 24.7 23.5 16.3 15.2 13.6 14.9 31.8 11.26
Aspirazione 23.8 32.5 39.4 33.1 27.4 18.2 17.7 45.5 24.96
Involucro 31.3 52.4 54.0 53.4 48.4 43.2 29.2 64.7 44.16
Vel. med. Mandata 16.7 39.2 35.3 28.5 24.7 16.0 15.4 45.7 25.16
Aspirazione 36.1 48.7 51.1 46.8 43.6 35.3 22.0 58.2 37.66
Involucro 39.2 53.4 64.0 63.2 59.8 55.6 43.9 78.3 57.76
Vel. max. Mandata 24.1 41.7 44.3 34.6 35.2 23.6 15.2 54.7 24.16
Aspirazione 42.5 51.3 60.2 55.5 53.9 47.2 33.2 69.3 48.76
* Pressione sonora calcolata a 3 m in campo libero in conformità alla norma ISO 9614.
