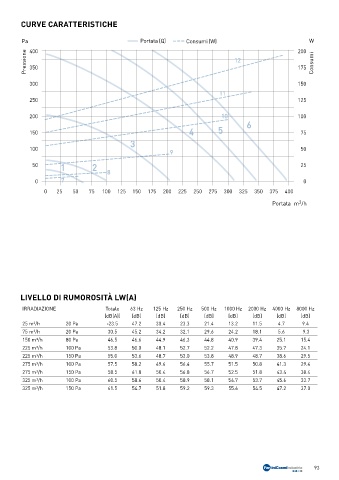

CURVE CARATTERISTICHE

Pa 400 Portata (Q) Consumi (W) 200 W

Pressione 350 12 175 Consumi

300 150
11
250 125

200 10 100
6
150 4 5 75
3
100 50
9

50 1 2 25
8
0 7 0
0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400

3
Portata m /h

LIVELLO DI RUMOROSITÀ LW(A)

IRRADIAZIONE Totale 63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz
[dB(A)] [dB] [dB] [dB] [dB] [dB] [dB] [dB] [dB]
25 m³/h 20 Pa <23.5 47.2 30.4 23.3 21.4 13.2 11.5 4.7 9.4
75 m³/h 20 Pa 30.5 45.2 34.2 32.1 29.6 24.2 18.1 5.6 9.3
150 m³/h 80 Pa 46.5 46.6 44.9 46.3 44.8 40.9 39.4 25.1 15.4
225 m³/h 100 Pa 53.8 50.0 48.1 52.7 52.2 47.8 47.3 35.7 24.1
225 m³/h 150 Pa 55.0 53.6 48.7 53.0 53.8 48.9 48.7 38.6 29.5
275 m³/h 100 Pa 57.5 58.2 49.6 56.4 55.7 51.5 50.8 41.3 29.4
275 m³/h 150 Pa 58.5 61.8 50.4 56.8 56.7 52.5 51.8 43.4 38.4
325 m³/h 100 Pa 60.5 58.6 50.4 58.9 58.1 54.7 53.7 45.6 33.7
325 m³/h 150 Pa 61.5 54.7 51.8 59.2 59.3 55.6 54.5 47.2 37.0
