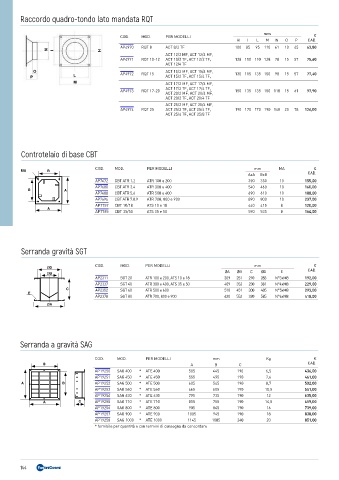

Page 144 - FANTINICOSMI - LISTINO 2023-06 REV4
P. 144
Raccordo quadro-tondo lato mandata RQT
mm
COD. MOD. PER MODELLI €
H I L M N O P CAD.
AP4970 RQT 8 ACT 8/2 TF 100 85 95 110 61 10 45 63,80
N I H
ACT 12/2 MF, ACT 12/4 MF,
AP4971 RQT 10-12 ACT 10/2 TF, ACT 12/2 TF, 128 110 110 128 78 15 57 75,60
ACT 12/4 TF
O AP4972 RQT 15 ACT 15/2 MF, ACT 15/4 MF, 130 115 135 150 98 15 57 77,40
P L ACT 15/2 TF, ACT 15/4 TF,
M ACT 17/2 MF, ACT 17/4 MF,
ACT 17/2 TF, ACT 17/4 TF,
AP4973 RQT 17-20 150 135 135 150 118 15 61 97,90
ACT 20/2 MF, ACT 20/4 MF,
ACT 20/2 TF, ACT 20/4 TF
ACT 25/2 MF, ACT 25/4 MF,
AP4974 RQT 25 ACT 25/2 TF, ACT 25/4 TF, 190 170 170 190 148 20 78 126,00
ACT 25/6 TF, ACT 25/8 TF
Controtelaio di base CBT
COD. MOD. PER MODELLI mm MA €
MA B
AxA BxB CAD.
AP7672 CBT ATR 1.2 ATR 100 e 200 390 350 10 155,00
AP7680 CBT ATR 3.4 ATR 300 e 400 540 460 10 160,00
B A
AP7688 CBT ATR 5.6 ATR 500 e 600 690 610 10 188,00
AP7694 CBT ATR 7.8.9 ATR 700, 800 e 900 890 800 10 237,00
AP7757 CBT 10/18 ATS 10 e 18 440 415 8 120,00
A
AP7765 CBT 35/50 ATS 35 e 50 590 535 8 164,00
Serranda gravità SGT
COD. MOD. PER MODELLI mm €
ØD
ØA ØB C ØD E CAD.
ØB
AP2311 SGT 20 ATR 100 e 200, ATS 10 e 18 309 251 210 283 N°3xM8 192,00
AP2337 SGT 40 ATR 300 e 400, ATS 35 e 50 409 352 230 381 N°4xM8 229,00
C AP2352 SGT 60 ATR 500 e 600 510 451 300 485 N°5xM8 293,00
E
AP2378 SGT 80 ATR 700, 800 e 900 620 552 320 585 N°6xM8 418,00
ØA
Serranda a gravità SAG
COD. MOD. PER MODELLI mm Kg €
B A B C CAD.
AP19250 SAG 400 * ATE 400 505 445 190 6,5 436,00
AP19251 SAG 450 * ATE 450 555 495 190 7,6 461,00
A B AP19252 SAG 500 * ATE 500 605 545 190 8,7 502,00
AP19253 SAG 560 * ATE 560 665 605 190 10,5 551,00
AP19254 SAG 630 * ATE 630 795 735 190 12 635,00
A C AP19255 SAG 710 * ATE 710 815 755 190 14,5 659,00
AP19256 SAG 800 * ATE 800 905 845 190 16 739,00
AP19257 SAG 900 * ATE 900 1005 945 190 18 838,00
AP19258 SAG 1000 * ATE 1000 1145 1085 240 20 851,00
* fornibile per quantità e con termini di consegna da concordare
144
