Page 6 - BAMPI - LISTINO BAMPLAST PP-TECH

BAMPI

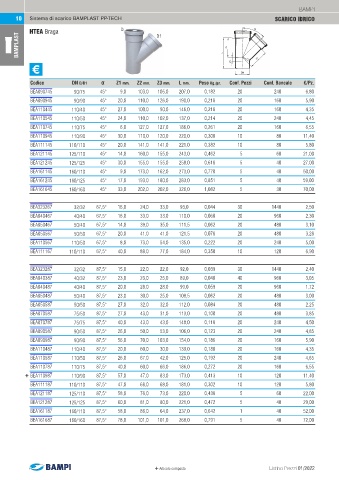

10 Sistema di scarico BAMPLAST PP-TECH SCARICO IDRICO
HTEA Braga D D1
BAMPLAST

Codice DN D/D1 α Z1 mm. Z2 mm. Z3 mm. L mm. Peso Kg./pz. Conf. Pezzi Conf. Bancale €/Pz.
BEA090745 90/75 45° 9,0 103,0 105,0 207,0 0,182 20 240 6,80
BEA090945 90/90 45° 20,0 110,0 126,0 190,0 0,218 20 160 5,90
BEA110445 110/40 45° 27,0 100,0 90,0 146,0 0,218 20 160 4,35
BEA110545 110/50 45° 24,0 110,0 102,0 137,0 0,214 20 240 4,45
BEA110745 110/75 45° 6,0 127,0 127,0 186,0 0,261 20 160 6,55
BEA110945 110/90 45° 30,0 110,0 120,0 220,0 0,300 10 80 11,40
BEA111145 110/110 45° 20,0 141,0 141,0 221,0 0,382 10 80 5,80
BEA121145 125/110 45° 14,0 160,0 155,0 243,0 0,462 5 60 21,00
BEA121245 125/125 45° 30,0 155,0 155,0 258,0 0,618 5 40 27,00
BEA161145 160/110 45° 9,0 173,0 162,0 273,0 0,770 5 40 50,00
BEA161245 160/125 45° 17,0 193,0 180,0 283,0 0,851 5 40 59,00
BEA161645 160/160 45° 33,0 202,0 202,0 326,0 1,082 5 30 70,00

BEA323267 32/32 67,5° 16,0 24,0 33,0 93,0 0,044 30 1440 2,50
BEA040467 40/40 67,5° 16,0 33,0 33,0 110,0 0,060 20 960 2,30
BEA050467 50/40 67,5° 14,0 39,0 35,0 111,5 0,062 20 480 3,10
BEA050567 50/50 67,5° 20,0 41,0 41,0 121,5 0,078 20 480 3,28
BEA110567 110/50 67,5° 8,0 73,0 54,0 135,0 0,222 20 240 5,00
BEA111167 110/110 67,5° 40,0 88,0 77,0 184,0 0,350 10 120 6,90

BEA323287 32/32 87,5° 15,0 22,0 22,0 92,0 0,039 30 1440 2,40
BEA040387 40/32 87,5° 23,0 23,0 25,0 89,0 0,040 40 960 3,05
BEA040487 40/40 87,5° 20,0 28,0 28,0 99,0 0,059 20 960 1,72
BEA050487 50/40 87,5° 23,0 30,0 25,0 108,5 0,062 20 480 3,00
BEA050587 50/50 87,5° 27,0 32,0 32,0 112,0 0,084 20 480 2,25
BEA070587 75/50 87,5° 27,0 43,0 31,0 113,0 0,100 20 480 3,85
BEA070787 75/75 87,5° 40,0 43,0 43,0 148,0 0,118 20 240 4,50
BEA090587 90/50 87,5° 26,0 50,0 53,0 106,0 0,123 20 240 4,85
BEA090987 90/90 87,5° 56,0 70,0 103,0 154,0 0,186 20 160 5,90
BEA110487 110/40 87,5° 20,0 60,0 30,0 139,0 0,180 20 160 4,35
BEA110587 110/50 87,5° 26,0 67,0 42,0 125,0 0,192 20 240 4,65
BEA110787 110/75 87,5° 40,0 60,0 66,0 186,0 0,272 20 160 6,55
+ BEA110987 110/90 87,5° 57,0 47,0 83,0 173,0 0,413 10 120 11,40
BEA111187 110/110 87,5° 47,0 68,0 68,0 181,0 0,302 10 120 5,80
BEA121187 125/110 87,5° 58,0 76,0 73,0 220,0 0,438 5 60 22,00
BEA121287 125/125 87,5° 60,0 81,0 80,0 221,0 0,472 5 40 29,00
BEA161187 160/110 87,5° 58,0 86,0 64,0 237,0 0,642 1 40 52,00
BEA161687 160/160 87,5° 78,0 101,0 101,0 268,0 0,791 5 40 72,00

+ Articolo composto Listino Prezzi 01/2022
