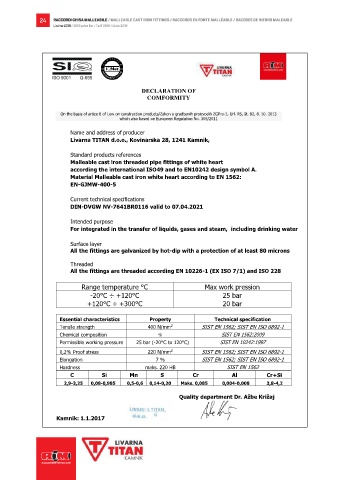

Page 26 - RACCORDERIEMETALLICHE - LISTINO RACCORDI GHISA MALLEABILE 2020

24 RACCORDI GHISA MALLEABILE / MALLEABLE CAST IRON FITTINGS / RACCORDS EN FONTE MALLÉABLE / RACORES DE HIERRO MALEABLE
Listino 2019 / 2019 price list / Tarif 2019 / Lista 2019

12 RACCORDI GHISA MALLEABILE ZINCATI
LISTINO INTERNAZIONALE 2016
R 50 51

DECLARATION OF
COMFORMITY

On the basis of artice 6 of Low on constraction products/Zakon o gradbenih proizvodih ZGPro-1, Url. RS, št. 82, 8. 10. 2013
which also based on European Regulation No. 305/2011

Name and address of producer
Livarna TITAN d.o.o., Kovinarska 28, 1241 Kamnik,

Standard products references
Malleable cast iron threaded pipe fittings of white heart
according the international ISO49 and to EN10242 design symbol A.
Material Malleable cast iron white heart according to EN 1562:
EN-GJMW-400-5

Current technical specifications
DIN-DVGW NV-7641BR0116 valid to 07.04.2021

Intended purpose
For integrated in the transfer of liquids, gases and steam, including drinking water

Surface layer
All the fittings are galvanized by hot-dip with a protection of at least 80 microns

Threaded
All the fittings are threaded according EN 10226-1 (EX ISO 7/1) and ISO 228

Range temperature °C Max work pression
-20°C ÷ +120°C 25 bar
+120°C ÷ +300°C 20 bar

Essential characteristics Property Technical specification
2
Tensile strength 400 N/mm SIST EN 1562; SIST EN ISO 6892-1
Chemical composition % SIST EN 1562:2009
Permissible working pressure 25 bar (-20°C to 120°C) SIST EN 10242:1997
2
0,2% Proof stress 220 N/mm SIST EN 1562; SIST EN ISO 6892-1
Elongation 7 % SIST EN 1562; SIST EN ISO 6892-1
Hardness maks. 220 HB SIST EN 1562
C Si Mn S Cr Al Cr+Si
2,9-3,25 0,08-0,985 0,5-0,6 0,14-0,20 Maks. 0,085 0,004-0,008 3,8-4,2

Quality department Dr. Ažbe Križaj

Kamnik: 1.1.2017
