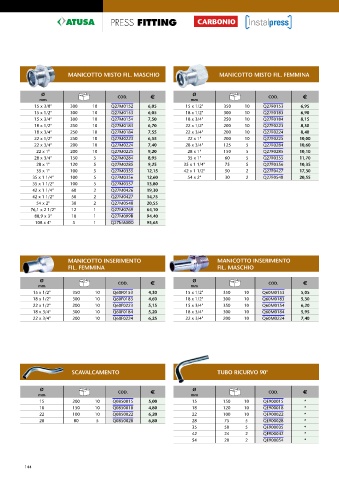

Page 144 - ATUSA - LISTINO 2023

PRESS FITTING CARBONIO

MANICOTTO MISTO FIL. MASCHIO MANICOTTO MISTO FIL. FEMMINA

Ø COD. Ø COD.
mm E mm E
15 x 3/8" 300 10 Q27M0152 6,05 15 x 1/2" 350 10 Q27F0153 6,95
15 x 1/2" 300 10 Q27M0153 6,05 18 x 1/2" 300 10 Q27F0183 6,90
15 x 3/4" 300 10 Q27M0154 7,50 18 x 3/4" 250 10 Q27F0184 8,15
18 x 1/2" 250 10 Q27M0183 6,70 22 x 1/2" 200 10 Q27F0223 8,30
18 x 3/4" 250 10 Q27M0184 7,55 22 x 3/4" 200 10 Q27F0224 8,40
22 x 1/2" 250 10 Q27M0223 6,55 22 x 1" 200 10 Q27F0225 10,00
22 x 3/4" 200 10 Q27M0224 7,40 28 x 3/4" 125 5 Q27F0284 10,60
22 x 1" 200 10 Q27M0225 9,20 28 x 1" 150 5 Q27F0285 10,10
28 x 3/4" 150 5 Q27M0284 8,95 35 x 1" 60 5 Q27F0355 11,70
28 x 1" 120 5 Q27M0285 9,25 35 x 1 1/4" 75 5 Q27F0356 10,35
35 x 1" 100 5 Q27M0355 12,15 42 x 1 1/2" 50 2 Q27F0427 17,30
35 x 1 1/4" 100 5 Q27M0356 12,60 54 x 2" 30 2 Q27F0548 20,55
35 x 1 1/2" 100 5 Q27M0357 13,80
42 x 1 1/4" 60 2 Q27M0426 19,30
42 x 1 1/2" 50 2 Q27M0427 14,75
54 x 2" 30 2 Q27M0548 20,55
76,1 x 2 1/2" 12 1 Q27M0769 64,10
88,9 x 3" 10 1 Q27M099B 94,40
108 x 4" 5 1 Q27MA00D 95,65

MANICOTTO INSERIMENTO MANICOTTO INSERIMENTO
FIL. FEMMINA FIL. MASCHIO

Ø Ø
mm COD. E mm COD. E
15 x 1/2" 350 10 Q60F0153 4,30 15 x 1/2" 350 10 Q60M0153 5,05
18 x 1/2" 300 10 Q60F0183 4,60 18 x 1/2" 300 10 Q60M0183 5,30
22 x 1/2" 200 10 Q60F0223 5,15 15 x 3/4" 350 10 Q60M0154 6,20
18 x 3/4" 300 10 Q60F0184 5,20 18 x 3/4" 300 10 Q60M0184 5,95
22 x 3/4" 200 10 Q60F0224 6,25 22 x 3/4" 200 10 Q60M0224 7,40

SCAVALCAMENTO TUBO RICURVO 90°

Ø Ø
mm COD. E mm COD. E
15 200 10 Q0850015 5,00 15 150 10 QE900015 *
18 150 10 Q0850018 4,80 18 120 10 QE900018 *
22 100 10 Q0850022 6,20 22 100 10 QE900022 *
28 80 5 Q0850028 6,80 28 75 5 QE900028 *
35 50 5 QE900035 *
42 24 2 QE900042 *
54 20 2 QE900054 *

144
