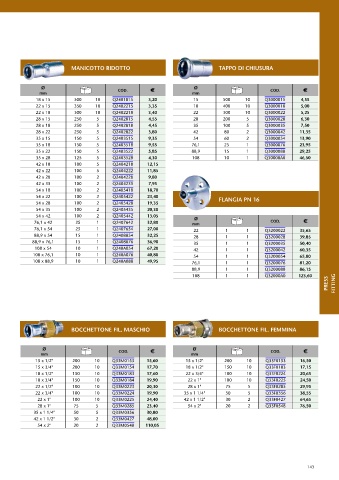

Page 143 - ATUSA - LISTINO 2023

MANICOTTO RIDOTTO TAPPO DI CHIUSURA

Ø Ø
mm COD. E mm COD. E
18 x 15 500 10 Q2401815 3,20 15 500 10 Q3000015 4,55
22 x 15 350 10 Q2402215 3,35 18 400 10 Q3000018 5,00
22 x 18 300 10 Q2402218 3,40 22 300 10 Q3000022 5,25
28 x 15 250 5 Q2402815 4,55 28 200 5 Q3000028 6,30
28 x 18 250 5 Q2402818 4,45 35 100 5 Q3000035 7,50
28 x 22 250 5 Q2402822 3,80 42 80 2 Q3000042 11,35
35 x 15 150 5 Q2403515 9,35 54 60 2 Q3000054 13,90
35 x 18 150 5 Q2403518 9,55 76,1 25 1 Q3000076 23,95
35 x 22 150 5 Q2403522 5,85 88,9 15 1 Q3000088 29,25
35 x 28 125 5 Q2403528 4,30 108 10 1 Q30000A0 46,50
42 x 18 100 5 Q2404218 12,15
42 x 22 100 5 Q2404222 11,85
42 x 28 100 2 Q2404228 9,80
42 x 35 100 2 Q2404235 7,95
54 x 18 100 2 Q2405418 18,70
54 x 22 100 2 Q2405422 23,40 FLANGIA PN 16
54 x 28 100 2 Q2405428 19,35
54 x 35 100 2 Q2405435 20,30
54 x 42 100 2 Q2405442 13,05 Ø
76,1 x 42 25 1 Q2407642 32,80 mm COD. E
76,1 x 54 25 1 Q2407654 27,00 22 1 1 Q3200022 35,65
88,9 x 54 15 1 Q2408854 32,25 28 1 1 Q3200028 39,85
88,9 x 76,1 15 1 Q2408876 36,90 35 1 1 Q3200035 50,40
108 x 54 10 1 Q240A054 67,20 42 1 1 Q3200042 60,35
108 x 76,1 10 1 Q240A076 40,80 54 1 1 Q3200054 65,80
108 x 88,9 10 1 Q240A088 49,95 76,1 1 1 Q3200076 81,20
88,9 1 1 Q3200088 86,15
108 1 1 Q32000A0 123,60
PRESS FITTING

BOCCHETTONE FIL. MASCHIO BOCCHETTONE FIL. FEMMINA

Ø Ø
mm COD. E mm COD. E
15 x 1/2" 200 10 Q33M0153 15,60 15 x 1/2" 200 10 Q33F0153 16,50
15 x 3/4" 200 10 Q33M0154 17,70 18 x 1/2" 150 10 Q33F0183 17,15
18 x 1/2" 150 10 Q33M0183 17,60 22 x 3/4" 100 10 Q33F0224 20,65
18 x 3/4" 150 10 Q33M0184 19,90 22 x 1" 100 10 Q33F0225 24,50
22 x 1/2" 100 10 Q33M0223 20,30 28 x 1" 75 5 Q33F0285 29,95
22 x 3/4" 100 10 Q33M0224 19,90 35 x 1 1/4" 50 5 Q33F0356 38,55
22 x 1" 100 10 Q33M0225 24,40 42 x 1 1/2" 30 2 Q33F0427 64,65
28 x 1" 75 5 Q33M0285 23,40 54 x 2" 20 2 Q33F0548 76,50
35 x 1 1/4" 50 5 Q33M0356 30,80
42 x 1 1/2" 30 2 Q33M0427 48,00
54 x 2" 20 2 Q33M0548 110,05

143
