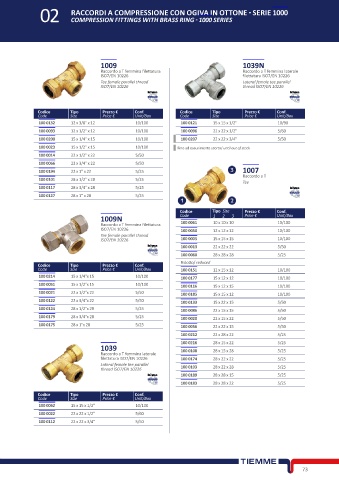

Page 93 - TIEMME - COMPONENTI IDRAULICI - FIDRA

02 RACCORDI A COMPRESSIONE CON OGIVA IN OTTONE - SERIE 1000
COMPRESSION FITTINGS WITH BRASS RING - 1000 SERIES

1009 1039N
Raccordo a T femmina filettatura Raccordo a T femmina laterale
ISO7/EN 10226 filettatura ISO7/EN 10226
Tee female parallel thread Lateral female tee parallel
ISO7/EN 10226 thread ISO7/EN 10226

Codice Tipo Prezzo € Conf. Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box Code Size Price € Unit/Box
100 0132 12 x 3/8" x 12 10/100 100 0121 15 x 15 x 1/2” 10/90
100 0093 12 x 1/2" x 12 10/100 100 0096 22 x 22 x 1/2” 5/60
100 0200 15 x 1/4" x 15 10/100 100 0207 22 x 22 x 3/4” 5/50
100 0023 15 x 1/2" x 15 10/100 Fino ad esaurimento scorta/ until out of stock
100 0014 22 x 1/2" x 22 5/50
100 0066 22 x 3/4" x 22 5/50
100 0194 22 x 1" x 22 5/25 1007
Raccordo a T
100 0101 28 x 1/2" x 28 5/25
Tee
100 0117 28 x 3/4" x 28 5/25
100 0127 28 x 1" x 28 5/25

Codice Tipo Size Prezzo € Conf.
1009N Code 1 2 3 Price € Unit/Box
Raccordo a T femmina filettatura 100 0061 10 x 10 x 10 10/100
ISO7/EN 10226 100 0050 12 x 12 x 12 10/100
Tee female parallel thread
ISO7/EN 10226 100 0005 15 x 15 x 15 10/100
100 0013 22 x 22 x 22 5/50
100 0060 28 x 28 x 28 5/25
Ridotto/ reduced
Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box 100 0151 12 x 15 x 12 10/100
100 0214 15 x 1/4”x 15 10/100 100 0177 15 x 12 x 12 10/100
100 0051 15 x 1/2”x 15 10/100 100 0116 15 x 12 x 15 10/100
100 0021 22 x 1/2”x 22 5/50 100 0185 15 x 15 x 12 10/100
100 0122 22 x 3/4”x 22 5/50 100 0133 15 x 22 x 15 5/50
100 0124 28 x 1/2”x 28 5/25 100 0086 22 x 15 x 15 5/50
100 0179 28 x 3/4”x 28 5/25 100 0020 22 x 15 x 22 5/50
100 0175 28 x 1”x 28 5/25 100 0056 22 x 22 x 15 5/50

100 0212 22 x 28 x 22 5/25
100 0216 28 x 15 x 22 5/25
1039 100 0108
Raccordo a T femmina laterale 28 x 15 x 28 5/25
filettatura ISO7/EN 10226 100 0174 28 x 22 x 22 5/25
Lateral female tee parallel 100 0103 28 x 22 x 28 5/25
thread ISO7/EN 10226
100 0189 28 x 28 x 15 5/25
100 0183 28 x 28 x 22 5/25

Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box
100 0062 15 x 15 x 1/2” 10/100
100 0022 22 x 22 x 1/2” 5/60
100 0112 22 x 22 x 3/4” 5/50

73
