24 RACCORDI GHISA MALLEABILE / MALLEABLE CAST IRON FITTINGS / RACCORDS EN FONTE MALLÉABLE / RACORES DE HIERRO MALEABLE
Listino 01/2025 / 01/2025 price list / Tarif 01/2025 / Lista 01/2025

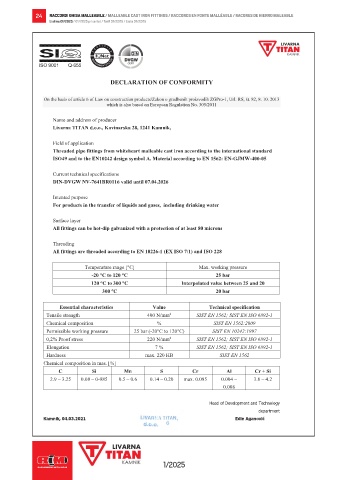

DECLARATION OF CONFORMITY

On the basis of article 6 of Law on construction products/Zakon o gradbenih proizvodih ZGPro-1, Url. RS, št. 82, 8. 10. 2013
which is also based on European Regulation No. 305/2011

Name and address of producer
Livarna TITAN d.o.o., Kovinarska 28, 1241 Kamnik,

Field of application
Threaded pipe fittings from whiteheart malleable cast iron according to the international standard
ISO49 and to the EN10242 design symbol A. Material according to EN 1562: EN-GJMW-400-05

Current technical specifications
DIN-DVGW NV-7641BR0116 valid until 07.04.2026

Intented purpose
For products in the transfer of liquids and gases, including drinking water

Surface layer
All fittings can be hot-dip galvanized with a protection of at least 80 microns

Threading
All fittings are threaded according to EN 10226-1 (EX ISO 7/1) and ISO 228

Temperature range [°C] Max. working pressure
-20 °C to 120 °C 25 bar
120 °C to 300 °C Interpolated value between 25 and 20
300 °C 20 bar

Essential characteristics Value Technical specification
Tensile strength 400 N/mm SIST EN 1562; SIST EN ISO 6892-1
2
Chemical composition % SIST EN 1562:2009
Permissible working pressure 25 bar (-20°C to 120°C) SIST EN 10242:1997
0,2% Proof stress 220 N/mm SIST EN 1562; SIST EN ISO 6892-1
2
Elongation 7 % SIST EN 1562; SIST EN ISO 6892-1
Hardness max. 220 HB SIST EN 1562
Chemical composition in mas. [%]
C Si Mn S Cr Al Cr + Si
2.9 – 3.25 0.08 – 0-985 0.5 – 0.6 0.14 – 0.20 max. 0.085 0.004 – 3.8 – 4.2
0.008

Head of Development and Technology
department
Kamnik, 04.03.2021 Edin Aganović

1/2025
