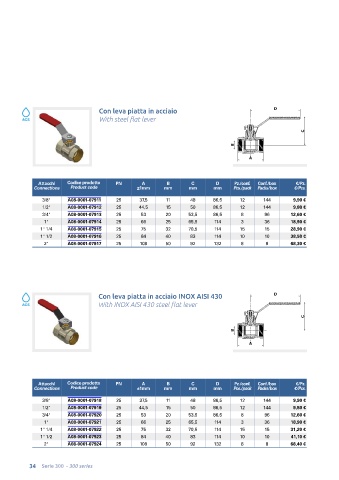

Page 34 - EUROTIS - CATALISTINO VALVOLE 2022 - FIDRA

Con leva piatta in acciaio D D

ACS With steel flat lever
C C

B B
A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
3/8" A08-0001-07911 25 37,5 11 48 86,5 12 144 9,90 €
1/2" A08-0001-07912 25 44,5 15 50 86,5 12 144 9,80 €
3/4" A08-0001-07913 25 53 20 53,5 86,5 8 96 12,60 €
1" A08-0001-07914 25 66 25 65,5 114 3 36 18,90 €
1" 1/4 A08-0001-07915 25 75 32 70,5 114 15 15 28,90 €
1" 1/2 A08-0001-07916 25 84 40 83 114 10 10 38,50 €
2" A08-0001-07917 25 108 50 92 132 8 8 68,30 €

Con leva piatta in acciaio INOX AISI 430 D D
ACS With INOX AISI 430 steel flat lever

C C

B
B
A A

Attacchi Codice prodotto PN A B C D Pz./conf. Conf./box €/Pz.
Connections Product code ±1mm mm mm mm Pcs./pack Packs/box €/Pcs.
3/8" A08-0001-07918 25 37,5 11 48 86,5 12 144 9,90 €
1/2" A08-0001-07919 25 44,5 15 50 86,5 12 144 9,80 €
3/4" A08-0001-07920 25 53 20 53,5 86,5 8 96 12,60 €
1" A08-0001-07921 25 66 25 65,5 114 3 36 18,90 €
1" 1/4 A08-0001-07922 25 75 32 70,5 114 15 15 31,20 €
1" 1/2 A08-0001-07923 25 84 40 83 114 10 10 41,10 €
2" A08-0001-07924 25 108 50 92 132 8 8 68,40 €

34 Serie 300 - 300 series
