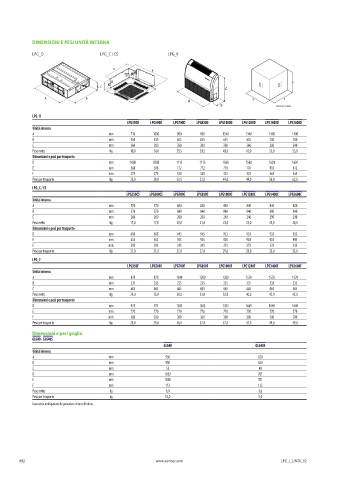

DIMENSIONI E PESI UNITÀ INTERNA

LPG_D LPG_C / CS LPG_F

A
B
F
C C
C
A B D E
A
B Esempio imballo

LPG_D
LPG350D LPG500D LPG700D LPG850D LPG1000D LPG1200D LPG1400D LPG1600D
Unità interna
A mm 710 1000 900 900 1340 1340 1400 1400
B mm 450 450 655 655 655 655 700 700
C mm 200 200 260 260 260 260 300 300
Peso netto kg 18,0 24,0 29,5 29,5 43,0 43,0 52,0 55,0

Dimensioni e pesi per trasporto
D mm 1008 1308 1115 1115 1568 1568 1601 1601
E mm 568 568 772 772 770 770 813 813
F mm 275 275 320 320 323 323 365 365
Peso per trasporto kg 22,0 29,0 33,5 33,5 49,0 49,0 58,0 62,0
LPG_C / CS
LPG350CS LPG500CS LPG700C LPG850C LPG1000C LPG1200C LPG1400C LPG1600C
Unità interna
A mm 570 570 840 840 840 840 840 840
B mm 570 570 840 840 840 840 840 840
C mm 260 260 200 200 240 240 290 290
Peso netto kg 17,0 17,0 21,0 21,0 23,0 23,0 25,0 26,0
Dimensioni e pesi per trasporto
D mm 698 698 943 943 933 933 933 933
E mm 653 653 923 923 903 903 903 903
F mm 295 295 245 245 272 272 335 335
Peso per trasporto kg 21,0 21,0 27,0 27,0 29,0 29,0 32,0 33,0
LPG_F
LPG350F LPG500F LPG700F LPG850F LPG1000F LPG1200F LPG1400F LPG1600F
Unità interna
A mm 870 870 1200 1200 1200 1570 1570 1570
B mm 235 235 235 235 235 235 235 235
C mm 665 665 665 665 665 665 665 665
Peso netto kg 24,0 25,0 31,0 32,0 32,0 40,0 42,0 42,0
Dimensioni e pesi per trasporto
D mm 973 973 1303 1303 1303 1669 1669 1669
E mm 770 770 770 770 770 770 770 770
F mm 300 300 300 300 300 300 300 300
Peso per trasporto kg 28,0 29,0 36,0 37,0 37,0 47,0 49,0 49,0

Dimensioni e pesi griglia
GLG40 - GLG40S
GLG40 GLG40S
Unità interna
A mm 950 620
B mm 950 620
C mm 52 48 SPLIT
D mm 1033 701
E mm 1038 701
F mm 112 125
Peso netto kg 6,0 3,0
Peso per trasporto kg 10,0 5,0
Accessorio obbligatorio da prevedere in fase d'ordine.
