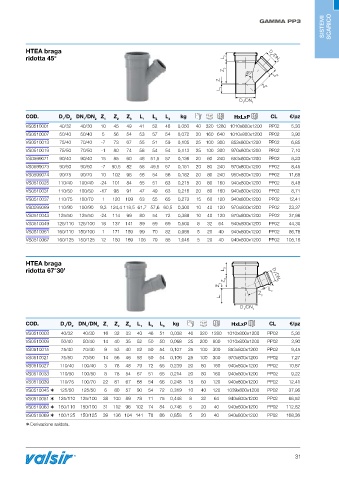

Page 33 - VALSIR - LISTINO ITS 2024 - DELLAFIORE
P. 33
SISTEMI SISTEMI SCARICO SCARICO
GAMMA PP3
HTEA braga
ridotta 45° L 3 D 2 /DN 2
Z 3 45°
L 2
Z 1
Z 2
L 1
D /DN 1
1
COD. D /D DN /DN Z Z Z L L L kg HxLxP CL €/pz
1 2 1 2 1 2 3 1 2 3
VS0510001 40/32 40/30 10 45 49 41 52 46 0,050 40 320 1280 1010x800x1200 PP02 5,30
VS0510007 50/40 50/40 5 56 54 53 57 54 0,072 20 160 640 1010x800x1200 PP02 3,90
VS0510013 75/40 70/40 -7 73 67 55 51 59 0,105 25 100 300 853x800x1200 PP02 6,85
VS0510019 75/50 70/50 -1 80 74 58 54 54 0,113 25 100 300 970x800x1200 PP02 7,10
VS0599071 90/40 90/40 15 85 60 48 51,5 57 0,136 20 80 240 853x800x1200 PP02 8,23
VS0599073 90/50 90/50 -7 90,5 82 58 49,5 57 0,151 20 80 240 970x800x1200 PP02 8,45
VS0599074 90/75 90/70 10 102 98 56 54 56 0,182 20 80 240 950x800x1200 PP02 11,68
VS0510025 110/40 100/40 -24 101 84 55 51 63 0,215 20 80 160 940x800x1200 PP02 8,48
VS0510031 110/50 100/50 -17 98 91 47 49 63 0,216 20 80 160 940x800x1200 PP02 8,71
VS0510037 110/75 100/70 1 120 109 63 55 65 0,273 15 60 120 940x800x1200 PP02 12,41
VS0599089 110/90 100/90 9,3 124,4 118,5 61,7 57,6 60,5 0,300 10 40 120 970x800x1200 PP02 23,37
VS0510043 125/50 125/50 -24 114 99 80 54 72 0,388 10 40 120 970x800x1200 PP02 37,96
VS0510049 125/110 125/100 18 137 141 89 69 69 0,500 8 32 64 940x800x1200 PP02 44,30
VS0510061 160/110 150/100 1 171 159 99 70 82 0,966 5 20 40 940x800x1200 PP02 86,78
VS0510067 160/125 150/125 12 180 169 105 79 85 1,046 5 20 40 940x800x1200 PP02 105,16
HTEA braga
ridotta 67°30’ L 3 D 2 /DN 2
Z 3
Z 1 L
Z 2
L 1 2
D /DN
1 1
COD. D /D DN /DN Z Z Z L L L kg HxLxP CL €/pz
1 2 1 2 1 2 3 1 2 3
VS0510003 40/32 40/30 16 32 33 40 46 51 0,038 40 320 1280 1010x800x1200 PP02 5,30
VS0510009 50/40 50/40 14 40 35 52 50 50 0,068 25 200 800 1010x800x1200 PP02 3,90
VS0510015 75/40 70/40 9 53 40 52 50 54 0,107 25 100 300 853x800x1200 PP02 9,45
VS0510021 75/50 70/50 14 56 46 58 50 54 0,106 25 100 300 970x800x1200 PP02 7,27
VS0510027 110/40 100/40 3 78 48 79 72 65 0,239 20 80 160 940x800x1200 PP02 10,87
VS0510033 110/50 100/50 8 78 54 67 51 65 0,214 20 80 160 940x800x1200 PP02 9,22
VS0510039 110/75 100/70 22 81 67 68 54 66 0,248 15 60 120 940x800x1200 PP02 12,41
VS0510045 Ü 125/50 125/50 6 80 57 90 54 72 0,319 10 40 120 1039x800x1200 PP02 37,96
VS0510051 Ü 125/110 125/100 38 100 89 78 71 75 0,448 8 32 64 940x800x1200 PP02 66,52
VS0510063 Ü 160/110 150/100 31 112 96 102 74 84 0,746 5 20 40 940x800x1200 PP02 112,82
VS0510069 Ü 160/125 150/125 39 136 104 141 76 86 0,858 5 20 40 940x800x1200 PP02 168,36
Ü Derivazione saldata.
