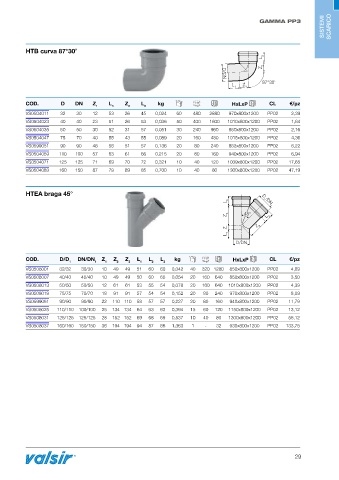

Page 31 - VALSIR - LISTINO ITS 2024 - DELLAFIORE

SISTEMI SISTEMI SCARICO SCARICO
GAMMA PP3

HTB curva 87°30’
L 2
Z 2

D/DN
L Z 87°30’
1 1

COD. D DN Z L Z L kg HxLxP CL €/pz
1 1 2 2
VS0504011 32 30 12 53 26 45 0,024 60 480 2880 970x800x1200 PP02 2,39
VS0504023 40 40 23 51 26 53 0,036 50 400 1600 1010x800x1200 PP02 1,84
VS0504035 50 50 30 52 31 57 0,051 30 240 960 850x800x1200 PP02 2,16
VS0504047 75 70 40 55 43 55 0,089 20 160 480 1015x800x1200 PP02 4,36
VS0599051 90 90 48 58 51 57 0,136 20 80 240 853x800x1200 PP02 6,22
VS0504059 110 100 57 63 61 66 0,215 20 80 160 940x800x1200 PP02 6,94
VS0504071 125 125 71 69 70 72 0,321 10 40 120 1039x800x1200 PP02 17,65
VS0504083 160 150 87 79 89 85 0,700 10 40 80 1300x800x1200 PP02 47,19

HTEA braga 45°
L 3 D 1 /DN 1

Z 3 45° L 2
Z 1 Z 2
L 1
D/DN

COD. D/D DN/DN Z Z Z L L L kg HxLxP CL €/pz
1 1 1 2 3 1 2 3
VS0508001 32/32 30/30 10 49 49 51 60 60 0,042 40 320 1280 850x800x1200 PP02 4,89
VS0508007 40/40 40/40 10 49 49 50 60 60 0,054 20 160 640 850x800x1200 PP02 3,50
VS0508013 50/50 50/50 12 61 61 53 55 54 0,078 20 160 640 1010x800x1200 PP02 4,39
VS0508019 75/75 70/70 18 91 91 57 54 54 0,152 20 80 240 970x800x1200 PP02 8,09
VS0599061 90/90 90/90 22 110 110 58 57 57 0,227 20 80 160 940x800x1200 PP02 11,79
VS0508025 110/110 100/100 25 134 134 64 63 63 0,394 15 60 120 1150x800x1200 PP02 13,12
VS0508031 125/125 125/125 28 152 152 69 68 69 0,537 10 40 80 1300x800x1200 PP02 56,12
VS0508037 160/160 150/150 36 194 194 94 87 86 1,363 1 - 32 930x800x1200 PP02 133,75
