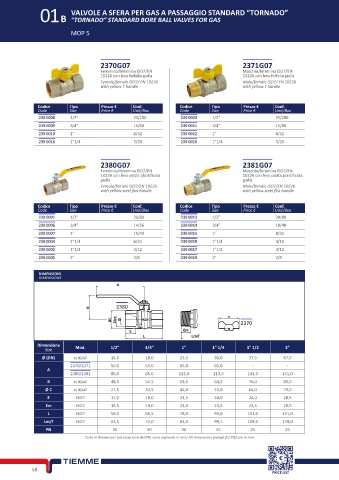

Page 78 - TIEMME - COMPONENTI IDRAULICI - DELLAFIORE

VALVOLE A SFERA PER GAS A PASSAGGIO STANDARD “TORNADO”
01B “TORNADO” STANDARD BORE BALL VALVES FOR GAS

MOP 5

2370G07 2371G07
Femmina/femmina ISO7/EN Maschio/femmina ISO7/EN
10226 con leva farfalla gialla 10226 con leva farfalla gialla
Female/female ISO7/ EN 10226 Male/female ISO7/ EN 10226
with yellow T handle with yellow T handle

Codice Tipo Prezzo € Conf. Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box Code Size Price € Unit/Box
239 0008 1/2” 25/100 239 0003 1/2” 25/100
239 0009 3/4” 15/60 239 0011 3/4” 15/60
239 0010 1” 8/32 239 0012 1” 8/32
239 0016 1”1/4 5/20 239 0020 1”1/4 5/20

2380G07 2381G07
Femmina/femmina ISO7/EN Maschio/femmina ISO7/EN
10226 con leva piatta plastificata 10226 con leva piatta plastificata
gialla gialla
Female/female ISO7/EN 10226 Male/female ISO7/EN 10226
with yellow steel flat handle with yellow steel flat handle

Codice Tipo Prezzo € Conf. Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box Code Size Price € Unit/Box
239 0001 1/2” 20/80 239 0013 1/2” 20/80
239 0006 3/4” 14/56 239 0014 3/4” 10/40
239 0007 1” 10/40 239 0015 1” 8/32
239 0004 1”1/4 6/24 239 0018 1”1/4 4/16
239 0002 1”1/2 3/12 239 0017 1”1/2 3/12
239 0005 2” 2/8 239 0019 2” 2/8

DIMENSIONI
DIMENSIONS
A

B 2380
ØC Size Ø 2370

E Em
L Lm/f
Dimensione Mod. 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
Size
Ø (DN) tutti/all 14,0 18,0 23,5 30,0 37,5 47,0
2370/2371 50,0 50,0 65,0 65,0 - -
A
2380/2381 85,0 85,0 113,0 113,0 141,0 141,0
B tutti/all 48,0 52,5 59,5 64,5 76,0 89,0
Ø C tutti/all 27,5 33,5 42,0 53,0 64,0 79,0
E ISO7 17,0 18,0 21,5 24,0 24,0 28,5
Em ISO7 16,5 18,0 21,0 23,5 23,5 28,0
L ISO7 58,0 66,5 78,0 93,0 101,0 121,0
Lm/f ISO7 63,5 72,0 83,0 99,1 108,0 129,0
PN 30 30 30 25 25 25
Tutte le dimensioni (ad eccezione del PN) sono espresse in mm/ All dimensions (except for PN) are in mm
