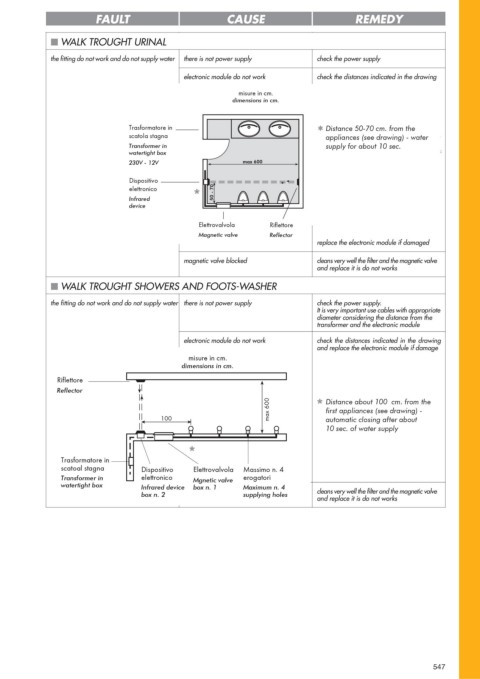

FAULT CAUSE REMEDY

Q WALK TROUGHT URINAL
the fitting do not work and do not supply water there is not power supply check the power supply

electronic module do not work check the distances indicated in the drawing

misure in cm.
dimensions in cm.

Trasformatore in distance 70 cm.
Distance 50-70 cm. from the
scatola stagna * the hygiene flushing is activated when the
appliances (see drawing) - water
supply for about 10 sec.
Transformer in dimensions in cm. user enter in the active range.
watertight box 200 - 600 Water flow starts as soon as the user departs
230V - 12V max 600
distance 50 cm.
Dispositivo * water flow starts as soon as the user departs
elettronico 50 - 70
Infrared * 50 - 70
device

Elettrovalvola Riflettore
Magnetic valve Reflector
replace the electronic module if damaged

magnetic valve blocked cleans very well the filter and the magnetic valve
and replace it is do not works

Q WALK TROUGHT SHOWERS AND FOOTS-WASHER
the fitting do not work and do not supply water there is not power supply check the power supply.
It is very important use cables with appropriate
diameter considering the distance from the
transformer and the electronic module
electronic module do not work check the distances indicated in the drawing
and replace the electronic module if damage
misure in cm.
dimensions in cm.
dimensions in cm.
reflector
Riflettore
Reflector 100 - 300

first appliances (see drawing) -
100 max 600 Distance about 100 cm. from the
100 automatic closing after about
10 sec. of water supply

transformer
Trasformatore in infrared magnetic valve maximum n. 4
device
supplying holes
scatoal stagna Dispositivo Elettrovalvola Massimo n. 4
Transformer in elettronico Mgnetic valve erogatori
230 V - 50 Hz
watertight box Infrared device box n. 1 Maximum n. 4
box n. 2 magnetic valve blocked supplying holes cleans very well the filter and the magnetic valve
and replace it is do not works

547
