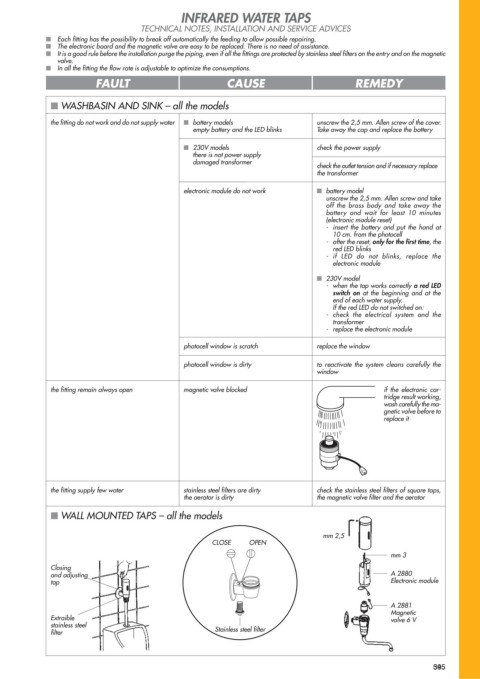

INFRARED WATER TAPS
TECHNICAL NOTES, INSTALLATION AND SERVICE ADVICES
Q Each fitting has the possibility to break off automatically the feeding to allow possible repairing.
Q The electronic board and the magnetic valve are easy to be replaced. There is no need of assistance.
Q It is a good rule before the installation purge the piping, even if all the fittings are protected by stainless steel filters on the entry and on the magnetic
valve.
Q In all the fitting the flow rate is adjustable to optimize the consumptions.
FAULT CAUSE REMEDY

Q WASHBASIN AND SINK – all the models
the fitting do not work and do not supply water Q battery models unscrew the 2,5 mm. Allen screw of the cover.
empty battery and the LED blinks Take away the cap and replace the battery
Q 230V models check the power supply
there is not power supply
damaged transformer
check the outlet tension and if necessary replace
the transformer
electronic module do not work Q battery model
unscrew the 2,5 mm. Allen screw and take
off the brass body and take away the
battery and wait for least 10 minutes
(electronic module reset)
- insert the battery and put the hand at
10 cm. from the photocell
- after the reset, only for the first time, the
red LED blinks
- if LED do not blinks, replace the
electronic module

Q 230V model
- when the tap works correctly a red LED
switch on at the beginning and at the
end of each water supply.
If the red LED do not switched on:
- check the electrical system and the
transformer
- replace the electronic module

photocell window is scratch replace the window

photocell window is dirty to reactivate the system cleans carefully the
window

the fitting remain always open magnetic valve blocked if the electronic car-
tridge result working,
wash carefully the ma-
gnetic valve before to
replace it

the fitting supply few water stainless steel filters are dirty check the stainless steel filters of square taps,
the aerator is dirty the magnetic valve filter and the aerator
Q WALL MOUNTED TAPS – all the models

mm 2,5
CLOSE OPEN
mm 3
Closing
and adjusting A 2880
tap Electronic module

A 2881
Magnetic
Extraible valve 6 V
stainless steel
filter Stainless steel filter
