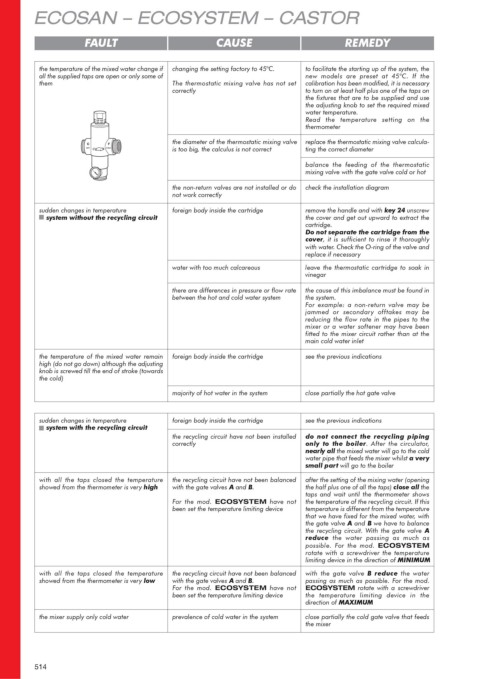

ECOSAN – ECOSYSTEM – CASTOR

FAULT CAUSE REMEDY

the temperature of the mixed water change if changing the setting factory to 45°C. to facilitate the starting up of the system, the
all the supplied taps are open or only some of new models are preset at 45°C. If the
them The thermostatic mixing valve has not set calibration has been modified, it is necessary
correctly to turn on at least half plus one of the taps on
the fixtures that are to be supplied and use
the adjusting knob to set the required mixed
water temperature.
Read the temperature setting on the
thermometer
the diameter of the thermostatic mixing valve replace the thermostatic mixing valve calcula-
C F
is too big, the calculus is not correct ting the correct diameter
HOT COLD
balance the feeding of the thermostatic
mixing valve with the gate valve cold or hot
the non-return valves are not installed or do check the installation diagram
not work correctly
sudden changes in temperature foreign body inside the cartridge remove the handle and with key 24 unscrew
system without the recycling circuit the cover and get out upward to extract the
cartridge.
Do not separate the cartridge from the
cover, it is sufficient to rinse it thoroughly
with water. Check the O-ring of the valve and
replace if necessary
water with too much calcareous leave the thermostatic cartridge to soak in
vinegar
there are differences in pressure or flow rate the cause of this imbalance must be found in
between the hot and cold water system the system.
For example: a non-return valve may be
jammed or secondary offtakes may be
reducing the flow rate in the pipes to the
mixer or a water softener may have been
fitted to the mixer circuit rather than at the
main cold water inlet

the temperature of the mixed water remain foreign body inside the cartridge see the previous indications
high (do not go down) although the adjusting
knob is screwed till the end of stroke (towards
the cold)
majority of hot water in the system close partially the hot gate valve

sudden changes in temperature foreign body inside the cartridge see the previous indications
system with the recycling circuit
the recycling circuit have not been installed do not connect the recycling piping
correctly only to the boiler. After the circulator,
nearly all the mixed water will go to the cold
water pipe that feeds the mixer whilst a very
small part will go to the boiler
with all the taps closed the temperature the recycling circuit have not been balanced after the setting of the mixing water (opening
showed from the thermometer is very high with the gate valves A and B. the half plus one of all the taps) close all the
taps and wait until the thermometer shows
For the mod. ECOSYSTEM have not the temperature of the recycling circuit. If this
been set the temperature limiting device temperature is different from the temperature
that we have fixed for the mixed water, with
the gate valve A and B we have to balance
the recycling circuit. With the gate valve A
reduce the water passing as much as
possible. For the mod. ECOSYSTEM
rotate with a screwdriver the temperature
limiting device in the direction of MINIMUM
with all the taps closed the temperature the recycling circuit have not been balanced with the gate valve B reduce the water
showed from the thermometer is very low with the gate valves A and B. passing as much as possible. For the mod.
For the mod. ECOSYSTEM have not ECOSYSTEM rotate with a screwdriver
been set the temperature limiting device the temperature limiting device in the
direction of MAXIMUM
the mixer supply only cold water prevalence of cold water in the system close partially the cold gate valve that feeds
the mixer
