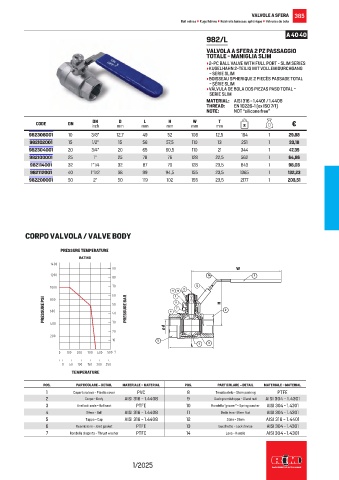

Page 387 - RACCORDERIEMETALLICHE - LISTINO 2025

VALVOLE A SFERA 385
Ball valves • Kugelhähne • Robinets boisseau sphérique • Valvulas de bola

A 40 40
982/L
VALVOLA A SFERA 2 PZ PASSAGGIO
TOTALE - MANIGLIA SLIM
• 2-PC BALL VALVE WITH FULL PORT - SLIM SERIES
• KUGELHAHN 2-TEILIG MIT VOLLEM DURCHGANG
- SERIE SLIM
• BOISSEAU SPHERIQUE 2 PIECÈS PASSAGE TOTAL
- SÉRIE SLIM
• VÁLVULA DE BOLA DOS PIEZAS PASO TOTAL -
SERIE SLIM
MATERIAL: AISI 316 - 1.4401 / 1.4408
THREAD: EN 10226-1 (ex ISO 7/1)
NOTE: NOT “silicone free”
L
D
H
W
T
DN
CODE DN inch mm mm mm mm mm g €
982308001 10 3/8” 12,7 49 52 108 12,5 184 1 29,88
982102001 15 1/2” 15 56 57,5 110 13 251 1 33,18
982304001 20 3/4” 20 65 60,5 110 21 344 1 47,35
982100001 25 1” 25 78 76 128 22,5 562 1 64,86
982114001 32 1”1/4 32 87 79 128 23,5 843 1 98,03
982112001 40 1”1/2 38 99 94,5 155 23,5 1365 1 132,23
982200001 50 2” 50 119 102 155 23,5 2177 1 203,51

CORPO VALVOLA / VALVE BODY

PRESSURE TEMPERATURE
RATING
W

PRESSURE PSI PRESSURE BAR H

ø d

L
?

TEMPERATURE

POS. PARTICOLARE – DETAIL MATERIALE – MATERIAL POS. PARTICOLARE – DETAIL MATERIALE – MATERIAL
1 Copertura leva - Plastic cover PVC 8 Tenuta stelo - Stem packing PTFE
2 Corpo - Body AISI 316 - 1.4408 9 Dado premistoppa - Gland nut AISI 304 - 1.4301
3 Anello di sede - Ball seat PTFE 10 Rondella “grower” - Spring washer AISI 304 - 1.4301
4 Sfera - Ball AISI 316 - 1.4408 11 Dado leva -Stem Nut AISI 304 - 1.4301
5 Tappo - Cap AISI 316 - 1.4408 12 Stelo - Stem AISI 316 - 1.4401
6 Guarnizione - Joint gasket PTFE 13 Lucchetto - Lock device AISI 304 - 1.4301
7 Rondella di spinta - Thrust washer PTFE 14 Leva - Handle AISI 304 - 1.4301

1/2025
