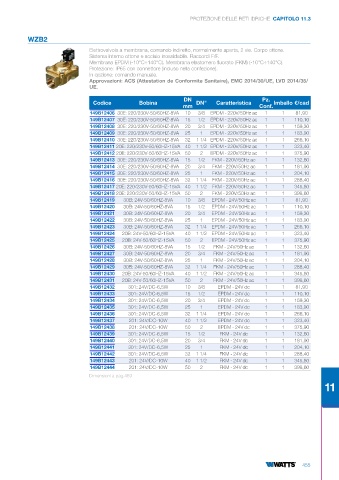

Page 457 - WATTS - CATALISTINO 2025

PROTEZIONE DELLE RETI IDRICHE CAPITOLO 11.3

WZB2
Elettrovalvola a membrana, comando indiretto, normalmente aperta, 2 vie. Corpo ottone.
Sistema interno ottone e acciaio inossidabile. Raccordi F/F.
Membrana EPDM (-10°C÷140°C). Membrana elastomero fluorato (FKM) (-10°C÷140°C).
Protezione: IP65 con connettore (incluso nella confezione).
In opzione: comando manuale.
Approvazioni: ACS (Attestation de Conformite Sanitaire), EMC 2014/30/UE, LVD 2014/35/
UE.

DN Pz.
Codice Bobina DN" Caratteristica Imballo €/cad
mm Conf.
149B12406 30E: 220/230V-50/60HZ-8VA 10 3/8 EPDM - 220V/50Hz ac 1 1 81,90
149B12407 30E: 220/230V-50/60HZ-8VA 15 1/2 EPDM - 220V/50Hz ac 1 1 110,10
149B12408 30E: 220/230V-50/60HZ-8VA 20 3/4 EPDM - 220V/50Hz ac 1 1 159,30
149B12409 30E: 220/230V-50/60HZ-8VA 25 1 EPDM - 220V/50Hz ac 1 1 183,90
149B12410 30E: 220/230V-50/60HZ-8VA 32 1 1/4 EPDM - 220V/50Hz ac 1 1 266,10
149B12411 20E: 220/230V-50/60HZ-15VA 40 1 1/2 EPDM - 220V/50Hz ac 1 1 323,40
149B12412 20E: 220/230V-50/60HZ-15VA 50 2 EPDM - 220V/50Hz ac 1 1 375,90
149B12413 30E: 220/230V-50/60HZ-8VA 15 1/2 FKM - 220V/50Hz ac 1 1 132,60
149B12414 30E: 220/230V-50/60HZ-8VA 20 3/4 FKM - 220V/50Hz ac 1 1 181,90
149B12415 30E: 220/230V-50/60HZ-8VA 25 1 FKM - 220V/50Hz ac 1 1 204,10
149B12416 30E: 220/230V-50/60HZ-8VA 32 1 1/4 FKM - 220V/50Hz ac 1 1 288,40
149B12417 20E: 220/230V-50/60HZ-15VA 40 1 1/2 FKM - 220V/50Hz ac 1 1 345,80
149B12418 20E: 220/230V-50/60HZ-15VA 50 2 FKM - 220V/50Hz ac 1 1 398,60
149B12419 30B: 24V-50/60HZ-8VA 10 3/8 EPDM - 24V/50Hz ac 1 1 81,90
149B12420 30B: 24V-50/60HZ-8VA 15 1/2 EPDM - 24V/50Hz ac 1 1 110,10
149B12421 30B: 24V-50/60HZ-8VA 20 3/4 EPDM - 24V/50Hz ac 1 1 159,30
149B12422 30B: 24V-50/60HZ-8VA 25 1 EPDM - 24V/50Hz ac 1 1 183,90
149B12423 30B: 24V-50/60HZ-8VA 32 1 1/4 EPDM - 24V/50Hz ac 1 1 266,10
149B12424 20B: 24V-50/60HZ-15VA 40 1 1/2 EPDM - 24V/50Hz ac 1 1 323,40
149B12425 20B: 24V-50/60HZ-15VA 50 2 EPDM - 24V/50Hz ac 1 1 375,90
149B12426 30B: 24V-50/60HZ-8VA 15 1/2 FKM - 24V/50Hz ac 1 1 132,60
149B12427 30B: 24V-50/60HZ-8VA 20 3/4 FKM - 24V/50Hz ac 1 1 181,90
149B12428 30B: 24V-50/60HZ-8VA 25 1 FKM - 24V/50Hz ac 1 1 204,10
149B12429 30B: 24V-50/60HZ-8VA 32 1 1/4 FKM - 24V/50Hz ac 1 1 288,40
149B12430 20B: 24V-50/60HZ-15VA 40 1 1/2 FKM - 24V/50Hz ac 1 1 345,80
149B12431 20B: 24V-50/60HZ-15VA 50 2 FKM - 24V/50Hz ac 1 1 398,60
149B12432 301: 24V/DC-6,5W 10 3/8 EPDM - 24V dc 1 1 81,90
149B12433 301: 24V/DC-6,5W 15 1/2 EPDM - 24V dc 1 1 110,10
149B12434 301: 24V/DC-6,5W 20 3/4 EPDM - 24V dc 1 1 159,30
149B12435 301: 24V/DC-6,5W 25 1 EPDM - 24V dc 1 1 183,90
149B12436 301: 24V/DC-6,5W 32 1 1/4 EPDM - 24V dc 1 1 266,10
149B12437 201: 24V/DC-10W 40 1 1/2 EPDM - 24V dc 1 1 323,40
149B12438 201: 24V/DC-10W 50 2 EPDM - 24V dc 1 1 375,90
149B12439 301: 24V/DC-6,5W 15 1/2 FKM - 24V dc 1 1 132,60
149B12440 301: 24V/DC-6,5W 20 3/4 FKM - 24V dc 1 1 181,90
149B12441 301: 24V/DC-6,5W 25 1 FKM - 24V dc 1 1 204,10
149B12442 301: 24V/DC-6,5W 32 1 1/4 FKM - 24V dc 1 1 288,40
149B12443 201: 24V/DC-10W 40 1 1/2 FKM - 24V dc 1 1 345,80
149B12444 201: 24V/DC-10W 50 2 FKM - 24V dc 1 1 398,60
Dimensioni a pag.469
11

455
