CAPITOLO 10.2 DISPOSITIVI PER GAS

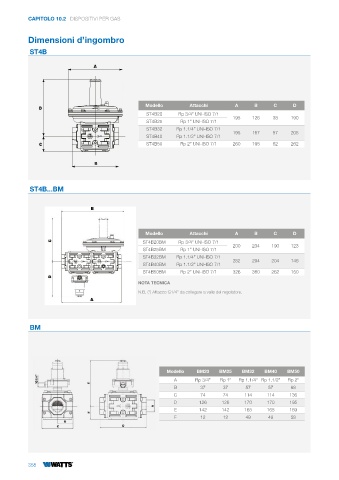

Dimensioni d’ingombro
ST4B
Modello Attacchi A B C D
ST4B20 Rp 3/4” UNI-ISO 7/1
195 126 38 190
ST4B25 Rp 1” UNI-ISO 7/1
ST4B32 Rp 1.1/4” UNI-ISO 7/1
195 167 57 205
ST4B40 Rp 1.1/2” UNI-ISO 7/1
ST4B50 Rp 2” UNI-ISO 7/1 260 195 62 262
ST4B...BM
Modello Attacchi A B C D
ST4B20BM Rp 3/4” UNI-ISO 7/1
200 234 190 123
ST4B25BM Rp 1” UNI-ISO 7/1
ST4B32BM Rp 1.1/4” UNI-ISO 7/1 282 294 204 146
ST4B40BM Rp 1.1/2” UNI-ISO 7/1
ST4B50BM Rp 2” UNI-ISO 7/1 326 360 262 150
NOTA TECNICA
N.B. (*) Attacco G1/4” da collegare a valle del regolatore.
BM
Modello BM20 BM25 BM32 BM40 BM50
A Rp 3/4” Rp 1” Rp 1.1/4” Rp 1.1/2” Rp 2”
B 37 37 57 57 68
C 74 74 114 114 136
D 126 126 170 170 195
E 142 142 165 165 169
F 12 12 49 49 58
