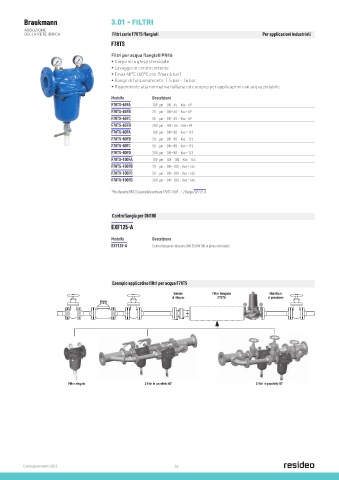

Page 33 - RESIDEO - HONEYWELL HOME - CATALOGO RESIDEO

Braukmann 3.01 - FILTRI
ADDUZIONE
DELLA RETE IDRICA Filtri serie F78TS flangiati Per applicazioni industriali
F78TS
Filtri per acqua flangiati PN16
• Corpo in in ghisa sferoidale
• Lavaggio in controcorrente
• Tmax 40°C (60°C con Pmax 6 bar)
• Range di funzionamento: 1.5 bar - 16 bar
• Rispondente alla normativa italiana ed europea per applicazioni con acqua potabile

Modello Descrizione
F78TS-65FA 100 µm - DN = 65 - Kvs = 69
F78TS-65FB 20 µm - DN = 65 - Kvs = 69
F78TS-65FC 50 µm - DN = 65 - Kvs = 69
F78TS-65FD 200 µm - DN = 65 - Kvs = 69
F78TS-80FA 100 µm - DN = 80 - Kvs = 113
F78TS-80FB 20 µm - DN = 80 - Kvs = 113
F78TS-80FC 50 µm - DN = 80 - Kvs = 113
F78TS-80FD 200 µm - DN = 80 - Kvs = 113
F78TS-100FA 100 µm - DN = 100 - Kvs = 145
F78TS-100FB 20 µm - DN = 100 - Kvs = 145
F78TS-100FC 50 µm - DN = 100 - Kvs = 145
F78TS-100FD 200 µm - DN = 100 - Kvs = 145

*Per diametro DN125 è possibile ordinare F78TS-100F... + 2 flange EXF125-A

Controflangia per DN100

EXF125-A

Modello Descrizione
EXF125-A Controflangia di riduzione DN125/DN100 in ghisa sferoidale

F78TS Reverse rinsing fine filter with flanges

Installation Example
Esempio applicativo filtri per acqua F78TS

Valvola Filtro flangiato Riduttore
di ritegno F78TS di pressione

2 filtri in parallelo 45°
Filtro singolo
2 filtri in parallelo 90°
Single filter 2 filters parallel 45° 2 filters parallel 90°

Installation Guidelines Typical Applications
• Install in horizontal pipework with filter bowl downwards Fine filters of this type are suitable for large residential buildings,
o This position ensures optimum filter efficiency commercial and industrial applications and for central water
• Install shutoff valves supply systems within the limits of their specifications.
• Ensure good access Fine filters of this type are installed:
o Pressure gauges can be read off easily • Where metal or plastic pipe-work exists
Catalogo prodotti 2022 o Simplifies maintenance and inspection 34 • In transfer points of central water supply systems if drainage
• The installation location should be protected against frost is available
• Fit immediately after water meter • If the downstream system includes appliances which must be
o Corresponds to EN 806-2 protected against dirt

Flow Diagram
[m 3 /h]
1000 2xDN100*
2xDN80*
500 DN100/125
DN80
EN0H-1178GE23 R0315 • Subject to change 100
DN65

50

10

Flow rate 5
1
0,01 0,05 0,1 0,5 1 5 10 [bar]
Pressure drop
* 2 filters parallel
