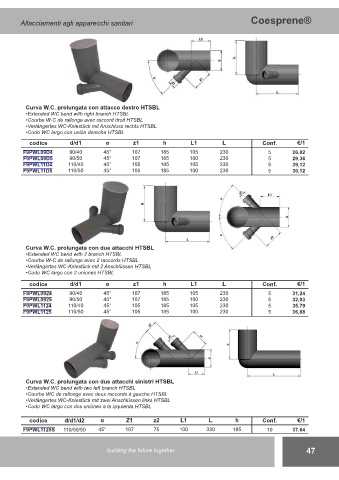

Page 49 - COES - LISTINO 2018

Coesprene®
Allacciamenti agli apparecchi sanitari

Curva W.C. prolungata con attacco destro HTSBL
•Extended WC bend with right branch HTSBL
•Courbe W-C de rallonge avec raccord droit HTSBL
•Verlängertes WC-Kniestück mit Anschluss rechts HTSBL
•Codo WC largo con unión derecha HTSBL

codice d/d1 α z1 h L1 L Conf. €/1
F9PWL09D4 90/40 45° 107 185 105 230 5 26,02
F9PWL09D5 90/50 45° 107 185 100 230 5 29,36
F9PWL11D4 110/40 45° 105 185 105 230 5 29,12
F9PWL11D5 110/50 45° 105 185 100 230 5 30,12

Curva W.C. prolungata con due attacchi HTSBL
•Extended WC bend with 2 branch HTSBL
•Courbe W-C de rallonge avec 2 raccords HTSBL
•Verlängertes WC-Kniestück mit 2 Anschlüssen HTSBL
•Codo WC largo con 2 uniones HTSBL

codice d/d1 α z1 h L1 L Conf. €/1
F9PWL0924 90/40 45° 107 185 105 230 5 31,24
F9PWL0925 90/50 45° 107 185 100 230 5 32,03
F9PWL1124 110/40 45° 105 185 105 230 5 35,79
F9PWL1125 110/50 45° 105 185 100 230 5 36,88

Curva W.C. prolungata con due attacchi sinistri HTSBL
•Extended WC bend with two left branch HTSBL
•Courbe WC de rallonge avec deux raccords à gauche HTSBL
•Verlängertes WC-Kniestück mit zwei Anschlüssen links HTSBL
•Codo WC largo con dos uniónes a la izquierda HTSBL

codice d/d1/d2 α Z1 z2 L1 L h Conf. €/1
F9PWL1125S 110/50/50 45° 107 75 100 330 185 10 37,64

building the future together 47
