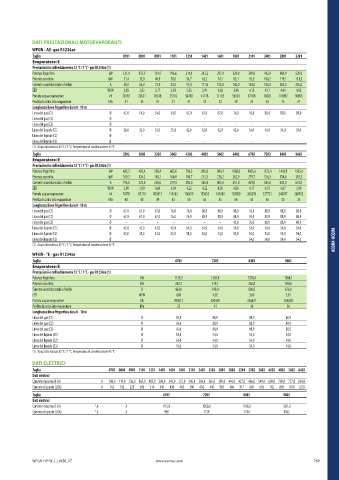

DATI PRESTAZIONALI MOTOEVAPORANTI
WFGN - AE- gas R1234ze
Taglia 0701 0801 0901 1101 1251 1401 1601 1801 2101 2401 2801 3201
Evaporatore: E
Prestazioni in raffreddamento 12 °C / 7 °C - gas R1234ze (1)

Potenza frigorifera kW 121,0 137,5 154,5 196,6 214,1 243,2 297,4 329,0 390,9 442,4 480,9 529,0
Potenza assorbita kW 31,4 35,9 40,9 50,0 54,7 62,2 74,1 83,1 93,9 106,2 119,1 131,5
Corrente assorbita totale a freddo A 58,0 65,0 73,0 83,0 97,0 111,0 125,0 140,0 154,0 183,0 203,0 226,0
EER W/W 3,85 3,83 3,77 3,93 3,92 3,91 4,02 3,96 4,16 4,17 4,04 4,02
Portata acqua evaporatore l/h 20792 23621 26548 33776 36780 41778 51103 56534 67168 76005 110092 90893
Perdita di carico lato evaporatore kPa 31 35 35 31 31 32 22 29 22 30 35 21
Lunghezza linee frigorifere da/a 0 - 10 m

Linea del gas (C1) Ø 42,0 54,0 54,0 54,0 67,0 67,0 67,0 76,0 76,0 89,0 89,0 89,0
Linea del gas (C2) Ø - - - - - - - - - - - -
Linea del gas (C3) Ø - - - - - - - - - - - -
Linea del liquido (C1) Ø 28,0 35,0 35,0 35,0 42,0 42,0 42,0 42,0 54,0 54,0 54,0 54,0
Linea del liquido (C2) Ø - - - - - - - - - - - -
Linea del liquido (C3) Ø - - - - - - - - - - - -
(1) Acqua lato utenza 12 °C / 7 °C; Temperatura di condensazione 45 °C
Taglia 2502 2802 3202 3602 4202 4802 5602 6402 6703 7203 8403 9603

Evaporatore: E
Prestazioni in raffreddamento 12 °C / 7 °C - gas R1234ze (1)
Potenza frigorifera kW 435,2 495,4 598,4 665,6 796,3 895,9 964,3 1068,0 1165,6 1325,4 1443,9 1565,4
Potenza assorbita kW 109,2 124,2 148,1 164,9 188,7 212,3 238,2 262,9 279,7 316,3 354,8 392,2
Corrente assorbita totale a freddo A 193,0 222,0 250,0 279,0 310,0 365,0 405,0 451,0 459,0 545,0 603,0 673,0
EER W/W 3,99 3,99 4,04 4,04 4,22 4,22 4,05 4,06 4,17 4,19 4,07 3,99
Portata acqua evaporatore l/h 74770 85110 102813 114362 136819 153933 165685 183500 200259 227721 248077 268953

Perdita di carico lato evaporatore kPa 60 48 49 63 50 63 45 56 34 46 43 24
Lunghezza linee frigorifere da/a 0 - 10 m
Linea del gas (C1) Ø 67,0 67,0 67,0 76,0 76,0 88,9 88,9 88,9 76,0 88,9 88,9 88,9
Linea del gas (C2) Ø 67,0 67,0 67,0 76,0 76,0 88,9 88,9 88,9 76,0 88,9 88,9 88,9
Linea del gas (C3) Ø - - - - - - - 42,0 76,0 88,9 88,9 88,9
42,0
Linea del liquido (C1) Ø Ø 42,0 42,0 42,0 42,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0 54,0
ACQUA-ACQUA Linea del liquido (C3) Ø - - - - - - - - 54,0 54,0 54,0 54,0 ACQUA-ACQUA
54,0
54,0
54,0
42,0
42,0
54,0
54,0
54,0
54,0
42,0
Linea del liquido (C2)
54,0
(1) Acqua lato utenza 12 °C / 7 °C; Temperatura di condensazione 45 °C
WFGN - °E - gas R1234ze
Taglia 6703 7203 8403 9603
Evaporatore: E
Prestazioni in raffreddamento 12 °C / 7 °C - gas R1234ze (1)
Potenza frigorifera kW 1129,2 1283,0 1378,4 1504,1
Potenza assorbita kW 282,3 319,1 356,8 394,8

Corrente assorbita totale a freddo A 463,0 549,0 606,0 676,0
EER W/W 4,00 4,02 3,86 3,81
Portata acqua evaporatore l/h 194017 220439 236821 258428
Perdita di carico lato evaporatore kPa 35 41 30 36
Lunghezza linee frigorifere da/a 0 - 10 m
Linea del gas (C1) Ø 76,0 88,9 88,9 88,9
Linea del gas (C2) Ø 76,0 88,9 88,9 88,9
Linea del gas (C3) Ø 76,0 88,9 88,9 88,9

Linea del liquido (C1) Ø 54,0 54,0 54,0 54,0
Linea del liquido (C2) Ø 54,0 54,0 54,0 54,0
Linea del liquido (C3) Ø 54,0 54,0 54,0 54,0
(1) Acqua lato utenza 12 °C / 7 °C; Temperatura di condensazione 45 °C
DATI ELETTRICI
Taglia 0701 0801 0901 1101 1251 1401 1601 1801 2101 2401 2502 2801 2802 3201 3202 3602 4202 4802 5602 6402

Dati elettrici
Corrente massima (FLA) A 106,0 119,0 136,0 162,0 183,0 208,0 243,0 275,0 305,0 350,0 365,0 389,0 416,0 427,0 486,0 549,0 609,0 700,0 777,0 854,0
Corrente di spunto (LRA) A 163 192 229 300 314 341 436 465 586 650 440 805 486 917 601 650 792 890 1070 1210
Taglia 6703 7203 8403 9603
Dati elettrici
Corrente massima (FLA) °,A A 913,0 1050,0 1166,0 1281,0
Corrente di spunto (LRA) °,A A 998 1129 1334 1502

WFGN-HP-W_I_UN50_07 www.aermec.com 769
