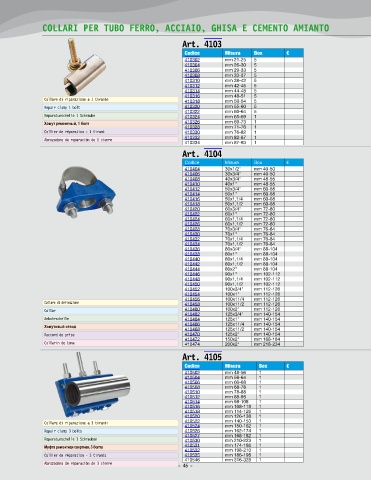

Page 48 - TECNOVIELLE - CATALOGO 2018
P. 48
COLLARI PER TUBO FERRO, ACCIAIO, GHISA E CEMENTO AMIANTO
Art. 4103
Codice Misura Box €
410302 mm 21-25 5
410304 mm 26-30 5
410306 mm 29-33 5
410308 mm 33-37 5
410310 mm 38-42 5
410312 mm 42-45 5
410314 mm 44-48 5
410316 mm 48-51 5
Collare di riparazione a 1 tirante
410318 mm 50-54 5
Repair clamp 1 bolt 410320 mm 55-60 5
410322 mm 60-64 5
Reparaturschelle 1 Schraube 410324 mm 65-69 1
Хомут ремонтный, 1 болт 410326 mm 69-73 1
410328 mm 71-76 1
Collier de réparation - 1 tirant 410330 mm 76-82 1
Abrazadera de reparación de 1 cierre 410332 mm 82-87 1
410334 mm 87-93 1
Art. 4104
Codice Misura Box €
410404 30x1/2" mm 40-50
410406 30x3/4" mm 40-50
410408 40x3/4" mm 48-55
410410 40x1" mm 48-55
410412 50x3/4" mm 60-68
410414 50x1" mm 60-68
410416 50x1,1/4 mm 60-68
410418 50x1,1/2 mm 60-68
410420 60x3/4" mm 72-80
410422 60x1" mm 72-80
410424 60x1,1/4 mm 72-80
410426 60x1,1/2 mm 72-80
410428 70x3/4" mm 76-84
410430 70x1" mm 76-84
410432 70x1,1/4 mm 76-84
410434 70x1,1/2 mm 76-84
410436 80x3/4" mm 88-104
410438 80x1" mm 88-104
410440 80x1,1/4 mm 88-104
410442 80x1,1/2 mm 88-104
410444 80x2" mm 88-104
410446 90x1" mm 102-112
410448 90x1,1/4 mm 102-112
410450 90x1,1/2 mm 102-112
410452 100x3/4" mm 112-126
410454 100x1" mm 112-126
410456 100x11/4 mm 112-126
Collare di derivazione
410458 100x11/2 mm 112-126
Collar 410460 100x2" mm 112-126
410462 125x3/4" mm 140-154
Anbohrschelle 410464 125x1" mm 140-154
Хомутовый отвод 410466 125x11/4 mm 140-154
410468 125x11/2 mm 140-154
Raccord de prise 410470 125x2" mm 140-154
410472 150x2" mm 168-184
Collarin de toma 410474 200x2" mm 218-234
Art. 4105
Codice Misura Box €
410502 mm 48-56 1
410504 mm 56-64 1
410506 mm 60-68 1
410508 mm 68-78 1
410510 mm 78-88 1
410512 mm 88-98 1
410514 mm 98-108 1
410516 mm 108-118 1
410518 mm 114-126 1
410520 mm 126-138 1
Collare di riparazione a 3 tiranti 410522 mm 140-153 1
410524 mm 150-162 1
Repair clamp 3 bolts 410526 mm 162-174 1
410527 mm 168-182 1
Reparaturschelle 3 Schrauben 410530 mm 210-223 1
Муфта ремонтная свертная, 3 болта 410531 mm 174-186 1
410532 mm 198-210 1
Collier de réparation - 3 tirants 410535 mm 186-198 1
410546 mm 316-328 1
Abrazadera de reparación de 3 cierre
- 46 -
