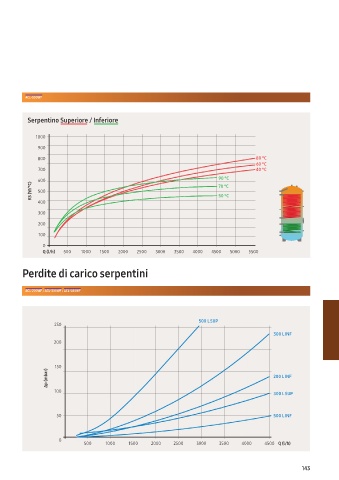

ACL-500WF
Serpentino Superiore / Inferiore
1000
900
800 80 °C
60 °C
700 40 °C
600 90 °C
KS (W/°C) 70 °C
50 °C
400
300
200
100
0
Q (l/h) 1000 2000 3000 4000
Perdite di carico serpentini
ACL-200WF / ACL-300WF / ACL-500WF
500 L SUP
300 L INF Accessori
200
p m ar 200 L INF
100 300 L SUP
500 L INF
0
1000 2000 3000 4000 Q (l/h)
